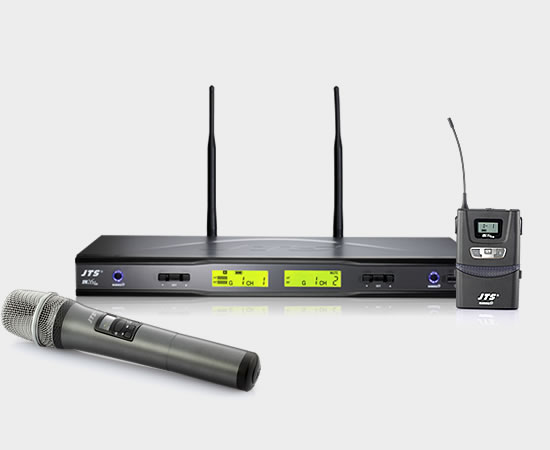

264 System

The JTS 264 series UHF diversity wireless system features ”REMOSET “ the world’s first remote control RF setting function that allows automatic remote control frequency settings of the transmitter from the receiver.
* REMOSET uses a RF signal to send frequency change settings from the IN SERIES receiver to the transmitter in a fraction
of a second.
* 200~480 meter operation distance.
* LCD Displays: RF Level, Audio Level, Low Battery Indicator, Antenna Status, Channel
Selection.
* IN264R withband width of 36 MHz.
* Preset 6 groups, maximum 23 channels in one group.

FCC CE REMOSET R
264 System
IN264TH
IN264TB
IN264R

PRODUCT SERIES

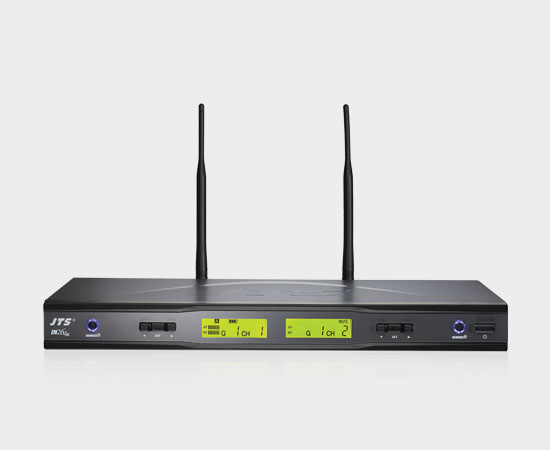

IN264R

UHF PLL Dual Channel Diversity Receiver

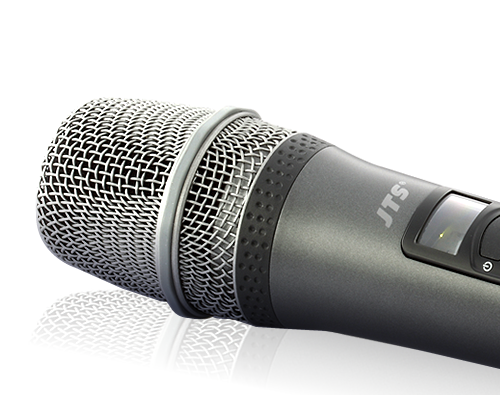

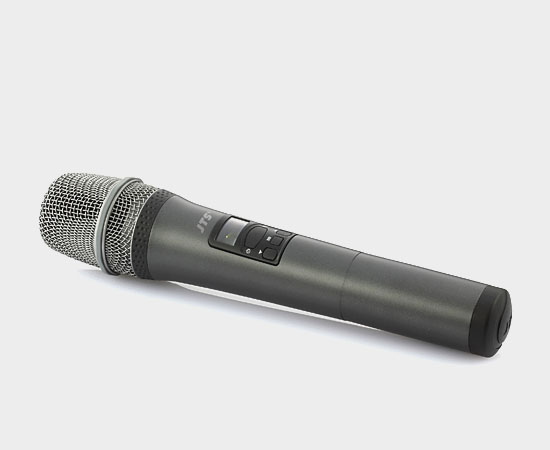

IN264TH

UHF PLL Handheld Transmitter

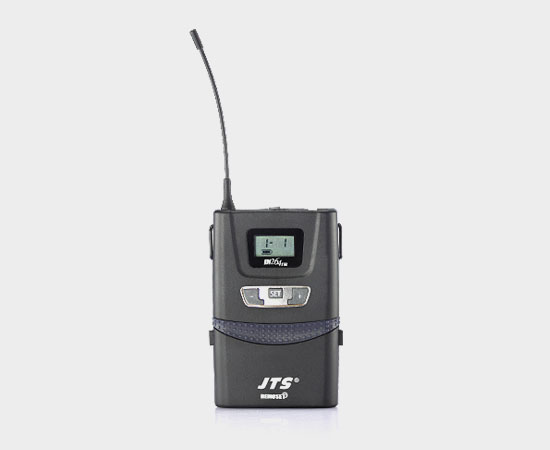

IN264TB

UHF PLL Body-Pack Transmitter

WHAT YOU GETIS SUITABLE FOR

CONFERENCE

CONFERENCE

LIVE PERFORMANCE

LIVE PERFORMANCE

VOCAL

VOCAL

PRESENTATION

PRESENTATION

SPECIFICATIONS

IN264R
Frequency Preparation PLL Synthesized Control
Remoset Radio Frequency : 2.4GHz
Effective distance: 10m
Carrier Frequency Range 36MHz within 502~960 MHz
S/N Ratio >105dB
T.H.D <0.6%@1KHz
Display LCD
Display Contents Channel, Antenna A/B, Mute Display, RF/AF Level Meter, Low battery, ID Number
Controls Power On/Off, Frequency Up/Down, Lock-on,
ID Pairing, Remoset
Audio Output Level -12dB
AF Output Impedance 600Ω
Squelch Pilot Tone & Noise Mute
Operation Voltage 12-18 VDC, 800 mA
Output Connector 2 XLR Balanced Socket
1 Ø6.3mm unbalanced phone jack
Dimension(m/m) 420mm(W) * 44mm(H) * 211mm(D)
IN264TH
Frequency Preparation PLL Synthesized Control
Carrier Frequency Range 502~960 MHz
RF Outputs 10mW / 50mW
(Depend on Local Regulation)
Stability ±10KHz
Frequency Deviation ±48KHz
LCD Display Channel, Battery Fuel Gauge, ID Number
Controls Power On/Off, AF Level, Frequency Up/Down, Lock-on Mode,ID Pairing
Spurious Emissions <-50 dBC
Audio Frequency Response 50~16,000 Hz
Battery UM3, AA 1.5V*2
IN264TB
Frequency Preparation PLL Synthesized Control
Carrier Frequency Range 502~960 MHz
RF Outputs 10mW / 50mW
(Depend on Local Regulation)
Stability ±10KHz
Frequency Deviation ±48KHz
LCD Display Channel, Battery Fuel Gauge,
Controls ID Number
Power On/Off, AF Level,
Frequency Up/Down, PAD, Gain Control, ID Pairing
Lock-on Mode
Output connector 4P mini XLR
Spurious Emissions <-50 dBC
Audio Frequency Response 40~18,000 Hz
Battery UM3, AA 1.5V*2
