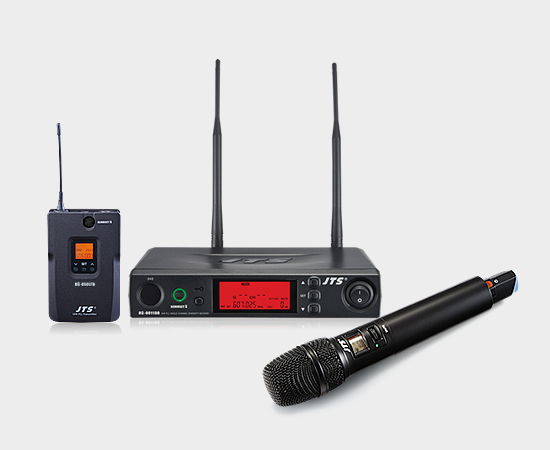

8011DB System
This product is a full version of RU-8011D. It is built with detachable BNC antenna. Besides selectable group and channel its frequency can be fine adjusted by interval of 0.025 MHz for multi system application.
PRODUCT SERIES

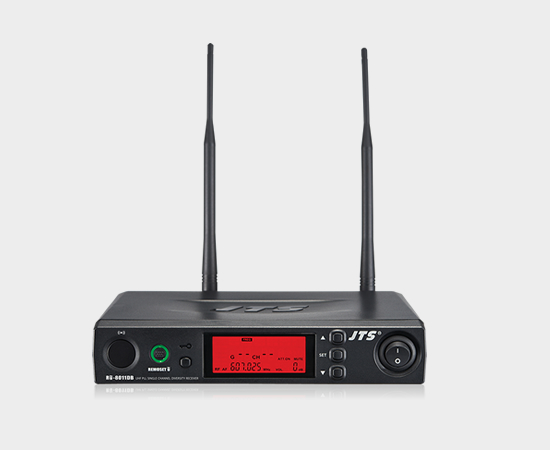

RU-8011DB(T)
UHF PLL Single Channel Diversity Receiver

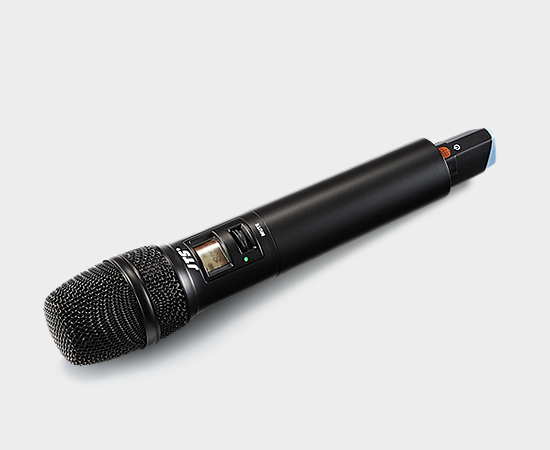

RU-850LTH(T)
UHF PLL Handheld Transmitter

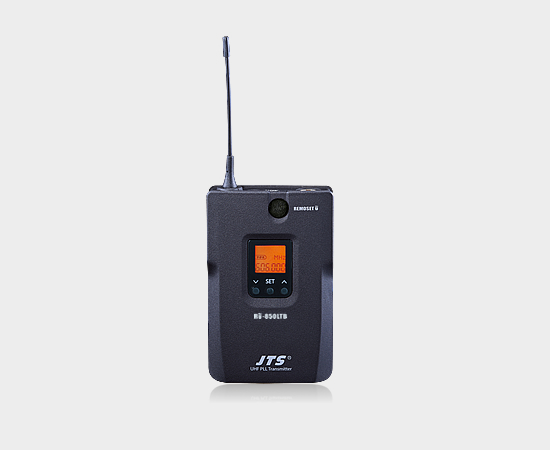

RU-850LTB(T)
UHF PLL Body-Pack Transmitter

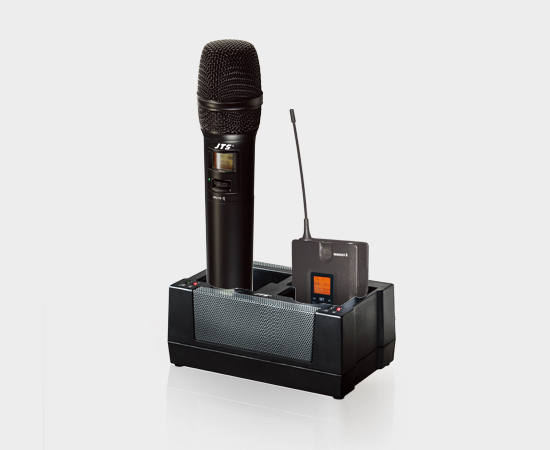

850CH-2
Charger For RU-850LTH & RU-850LTB

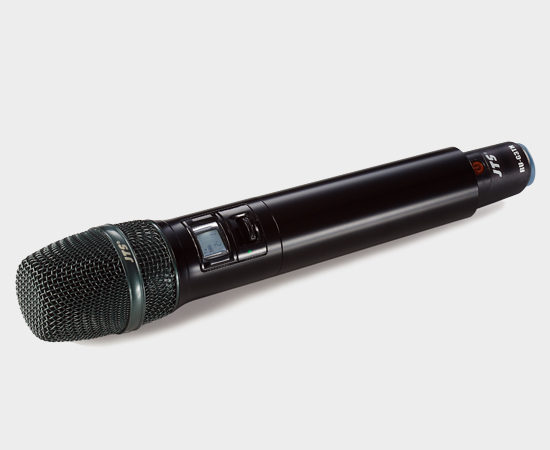

RU-G3TH(T)
UHF PLL Handheld Transmitter
WHAT YOU GETIS SUITABLE FOR
CONFERENCE
VOCAL
PRESENTATION
SPECIFICATIONS
| RU-8011DB |
| Frequency Setting | REMOSET U |
| Receiving Mode | Antenna Diversity |
| Bandwidth | 36MHz |
| S/N Ratio | >105dB(A) |
| T.H.D | <0.6%@1KHz |
| Sensitivity | -95dBm,S/N>80dB |
| Rejection Ratio | >80 dB |
| Frequency Response | 50Hz~16KHz±2dB |
| Antenna Type | BNC Socket |
| Antenna Booster Power | DC12~15V/100mA |
| Display | LCD |
| Display Contents | Group, Channel, Frequency, Battery Level, Antenna A/B, Mute Display, AF Meter, RF Meter, Frequency Scan, Audio Level, Volume |
| Controls | Power ON/OFF, Group, Channel, Frequency, Mute Display, Key Lock, Volume, Output Attenuaiton(XLR), Frequency Scan(ON/OFF) |
| Audio Output Level | Ref/ ±22.5KHz Dev@1KHz Tone ψ6.3 Phone Jack/ -10dBV XLR Jack/ -4dBV(Line) ˴ -24dBV(MIC) |
| Audio Output Impedance | 600Ω |
| Squelch | Pilot Tone & Noise Mute |
| Output Connector | 1 independent balanced XLR and one Ø6.3mm unbalanced. |
| Power Supply | DC12~15V/300mA |
| Dimension (mm) | 212.3mm(W)* 38.3mm(H)* 144mm(D) |
| Notes | Acutal product specifications may vary depending on region |
| RU-850LTH / RU-850LTHT |
| Frequency Preparation | PLL Synthesized Control |
| Carrier Frequency Range | 470~960MHz |
| 3x Frequency range | 856.100 - 864.900 MHz (F band) 606.500 - 629.900 MHz (U band) 721.500 - 748.375 MHz (G band) 658.125 - 678.500 MHz (D band) 487.125 - 506.500 MHz (I band) 502.000 - 694.000 MHz (T band) |
| Frequency Setting | REMOSET U(Receive) |
| RF Outpus | Low / High |
| Stability | <±10KHz@Fc |
| Frequency Deviation | ±48KHz |
| Spurious Emissions | <-50dBc |
| Function | Mute, Auto Power Off, Sensitivity Adjust, Low Battery |
| Display | LCD+LED |
| Controls | Power, Mute, Group, Channel, Frequency, Gain Adjust, Auto Power Off, Key Lock |
| Battery | UM3, AA x2 |
| RU-G3TH (Option) |
| Frequency Preparation | PLL Synthesized Control |
| Carrier Frequency Range | UHF 470~960 MHz |
| 3x Frequency range | 856.100 - 864.900 MHz (F band) 606.500 - 629.900 MHz (U band) 721.500 - 748.375 MHz (G band) 658.125 - 678.500 MHz (D band) 487.125 - 506.500 MHz (I band) 502.000 - 694.000 MHz (T band) |
| Frequency Setting | Remoset U Ultrasonic |
| RF Outputs | Low/High |
| Stability | <±10KHz@ Fc |
| Frequency Deviation | ±48KHz |
| Spurious Emissions | <-50dBc |
| Display | LCD+LED |
| Controls | Power ON/OFF, Mute ON/OFF, Group, Channel, Frequency, GAIN Adjust, Auto Power Off Adjust, Lock-on Mode |
| Battery | UM3, AA x2 |
| Slot-in Charging | Yes |
| Dimensions | 50(W) x 253(H) x 35.5(D) |
| Notes | Actual product specifications may vary depending on model and region. |
| RU-850LTB |
| Frequency Preparation | PLL Synthesized Control |
| Carrier Frequency Range | 470~960MHz |
| Frequency Setting | REMOSET U(Receive) |
| RF Outpus | Low / High |
| Stability | <±10KHz@Fc |
| Frequency Deviation | ±48KHz |
| Spurious Emissions | <-50dBc |
| Function | Mute, Auto Power Off, Sensitivity Adjust, Low Battery |
| Display | LCD+LED |
| Input Connector | 4P Mini XR |
| Controls | Power, Mute, Group, Channel, Frequency, Gain Adjust, Auto Power Off, Key Lock |
| Battery | UM3, AA x2 |
| 850CH-2 (Option) |
| Input | AC 100~240V, 0.4A max |
| Output | DC 12V, 1A |
| LED Indicator Full Charged / Standby | Green |
| Charging | Flash Green |
| Fault | Flash Red |
| Charging Time | 5 hours |
DOWNLOAD
| USER GUIDES | |
| US-8011DB System-10 | |
