UF-20S System

* UHF True diversity technology renders 200-480 meters of operation distance
* Maximum 2400 to 3000 selectable frequencies across 60 to 75 MHz
* Preset 15 groups each of up to 63 compatible channels
* User programmable 6 groups each of 64 channels
* Free space scan function
* JTS Patented obstacle-free RF
function synchronizes a transmitter by pushing a button
* JTS LCX circuit design technology minimizes companding noise
NEWEST FEATURE:
* The is now not only sends the frequency data but also transmitter’s RF power,
sensitivity, low cut, key lock and user's name.
* RF “NO SIGNAL” alert function.
* AF “MUTE” alert function.
* Transmitter “LOW BATTERY” alert function.
* Built in equalizer

FCC CE REMOSET R

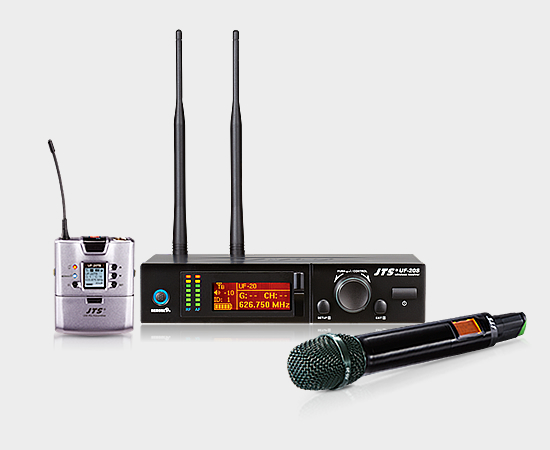

UF-20S System
JSS-20
UF-20TB
UF-20S
CH2 CH-8

PRODUCT SERIES

UF-20S

Single Channel Wideband True Diversity Receiver

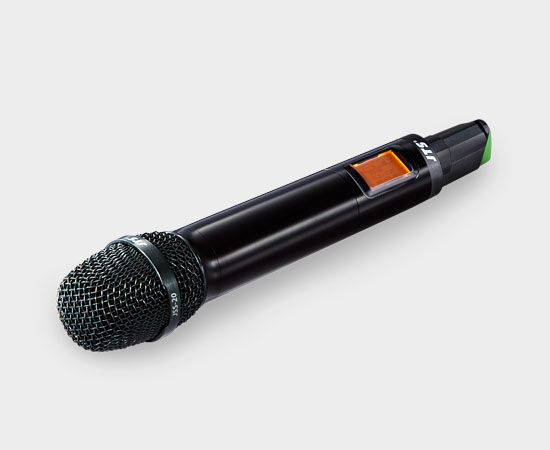

JSS-20

Professional Wideband Handheld Transmitter

UF-20TB

Professional Wideband Body-Pack Transmitter

CH-2

Charger for JSS-20 & UF-20TB ( 2-Slot )

CH-8

Charger for JSS-20 & UF-20TB ( 8-Slot )

WHAT YOU GETIS SUITABLE FOR

BROADCAST

BROADCAST

LIVE PERFORMANCE

LIVE PERFORMANCE



2nd Generation
REMOSET

Frequency Data
RF Power
Sensitivity
Low Cut
Key Lock
User’s Name
Interchangeable Capsule Module

JTS newest development SAM-8WLN capsule assures outstanding
acoustic performance while minimizes touching noise.
Interchangeable capsule design for various choices including some
classic capsule modules.

Low Cut Function
Low Battery Alert
Mute Alert
Prevent from low frequency
pop noise and wind noise.
Remind the user to change the
battery when the battery level
gets too low.
Remind the user that microphone
is in mute mode.
Sliding Cover Design
Rechargeable
To prevent the user from
touching the setting key
unintentionally.
It is designed with slot-in charging
feature with two AA NiMH
rechargeable batteries.

SPECIFICATIONS

UF-20S

Frequency Preparation

PLL Synthesized Control
Frequency Setting  JTS patented obstacles-free RF REMOSET
Carrier Frequency Range UHF 470~960 MHz
Channel Single
Bandwidth 60~75MHz Wideband
S / N Ratio > 108dB (A)
T.H.D <0.5% @ 1KHz
Chassis 1/2U standard metal chassis
Preset Channels / Group

* From group 1 ~ 15 up to 63 interference-free compatible channels.
* 844 preset channels / group and 3000 selectable frequencies across 63 to 75 Hz Bandwidth.
* User programmable from U1 ~ U6 each of 64 channels reserved.

Display LCD
Display Contents Group, Channel, Frequency, Antenna A / B, RF / AF Level Meter, Mute Display, Transmitter Battery Status, REMOSET ID Number, User Name, Squelch
Sensitivity 6dBμV, at S / N> 80dB
Receiving Mode True diversity
Audio Output Level Maximum 6dBu
Receiving Mode True diversity
Audio Output Level Maximum 6dBu
AF Output Impedance 600Ω
Frequency Response 50Hz ~ 18kHz, with high-pass filter
Squelch Pilot Tone & Noise Mute
Power Supply 100 ~ 240V or 12V DC
Output Connector 1 XLR Balanced Socket
1 Ø6.3mm Unbalanced phone jack

Dimension (m / m) 212mm(W)x44Mmm(H)x213.9mm(D)
Notes Actual product specifications may vary depending on model and region.
JSS-20
Frequency Preparation PLL Synthesized Control
Carrier Frequency Range UHF 502~960 MHz
Bandwidth 75MHz Wideband
RF Outputs 10mW / 50mW
(Depend on Local Regulation)
Stability < ±10KHz
Frequency Deviation ±48KHz (Peak)
LCD Display Group, Channel, Frequency, Battery Status, User Name, GAIN Adjust
Controls Power ON / OFF, AF Level, Frequency (Up / Down), Lock-on Mode, REMOSET ID Pairing, RF Output Adjust
Spurious Emissions <-50 dBC
Audio Frequency Response 50Hz ~ 18k Hz
Capsule Module Interchangeable
Battery AA NiMH x2
Dimensions 50mm (W) x253mm (H) x35.5mm (D)
Weight 350g
Notes Actual product specifications may vary depending on model and region.
UF-20TB
Frequency Preparation PLL Synthesized Control
Carrier Frequency Range UHF 502~960 MHz
Bandwidth 75MHz Wideband
RF Outputs 10mW / 50mW
(Depend on Local Regulation)
Stability < ±10KHz
Frequency Deviation ± 48KHz (Peak)
Chassis Aluminium alloy
LCD Display Group, Channel, Frequency, Battery Status, User Name , GAIN Adjust
Controls Power ON/OFF, AF Level, Frequency (Up/ Down), Lock-on Mode, REMOSET ID Pairing, RF Output Adjust
Output Connector 4P Mini XLR
Spurious Emissions <-50 DBC
Audio Frequency Response 50Hz ~ 18k Hz
Battery AA NiMH x2
Dimensions 62mm (W) x80.3mm (H) x22.6mm (D)
Weight 93g
Notes Actual product specifications may vary depending on model and region.

DOWNLOAD

USER GUIDES
UF-20S System-05
