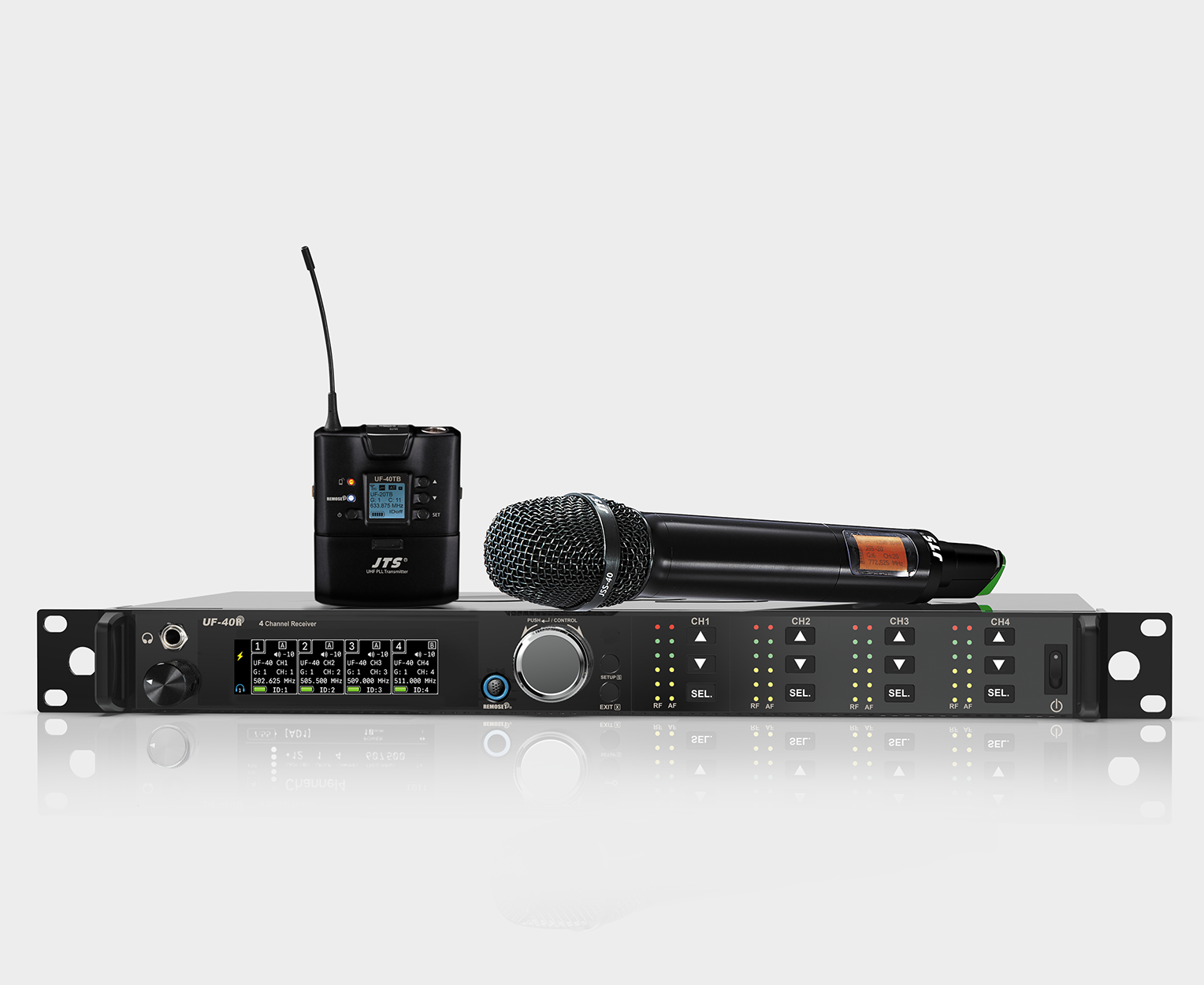

UF-40 System NEW

* Four-channel True Diversity Wireless Receiver with DANTE in 1U for efficient system integration.
* JTS Patented REMOSET allows all transmitters to sync instantly with a single button press.
* Supports up to 4 wireless receivers/transmitters simultaneously.
* User programmable 6 groups each of 64 channels.
* Preset 15 groups each of up to 63 compatible channels.
* Maximum 2400 to 4000 selectable frequencies across 60 to 108 MHz, ideal for today’s crowded RF environments.
* All-new industrial design with an acrylic front panel.
* Integrated rack-mount handles on both sides for easy installation and removal from racks.
* ISP LCD-TFT display (640x172 pixel) provides clear and intuitive system status information.
* 4 x balanced XLR outputs + 1 x mixed audio output.

WHAT YOU GETIS SUITABLE FOR

LIVE PERFORMANCE

SPECIFICATIONS

UF-40R

Frequency Preparation	PLL Synthesized Control
Frequency Setting	JTS patented obstacles-free RF REMOSET
Carrier Frequency Range	UHF 470~960MHz
Channel	Four
Bandwidth	108MHz Wideband (MAX)
S/N Ratio	>108dB(A)
T.H.D.	<0.5%@1KHz
Chassis	1U standard metal chassis
Preset Channels/Group	˙From group 1~15 up to 63 interference-free compatible channels. ˙844 preset channels/group and 3000 selectable frequencies across 60 to 108 MHz Bandwidth. ˙User programmable from U1~U6 each of 64 channels reserved.
Display	IPS TFT LCD
Display Contents	Group, Channel, Frequency, Antenna A/B, RF/AF Level Meter, Mute Display, Transmitter Battery Status, REMOSET ID Number, User Name, Squelch
EQ	Low cut, Hi freq Boost
Receiving Mode	True diversity
Audio Output Level	Maximum 6dBu
XLR AF Output Impedance	150/600Ω (mic/Line)
Frequency Response	50 to 18k Hz, with high-pass filter
Volume Adjustwent	0~-50dB
Squelch	Pilot Tone & Noise Mute
Power Suply	100~240V or 12V DC
Output Connector	5 XLR Balanced Socket
Network Interface	Dual Port Ethernet, Dante Digital Audio
Dimension(mm)	480mm(W)x45mm(H)x260mm(D)
Weight	2.9kg
Note	Actual product specifications may vary depending on region.

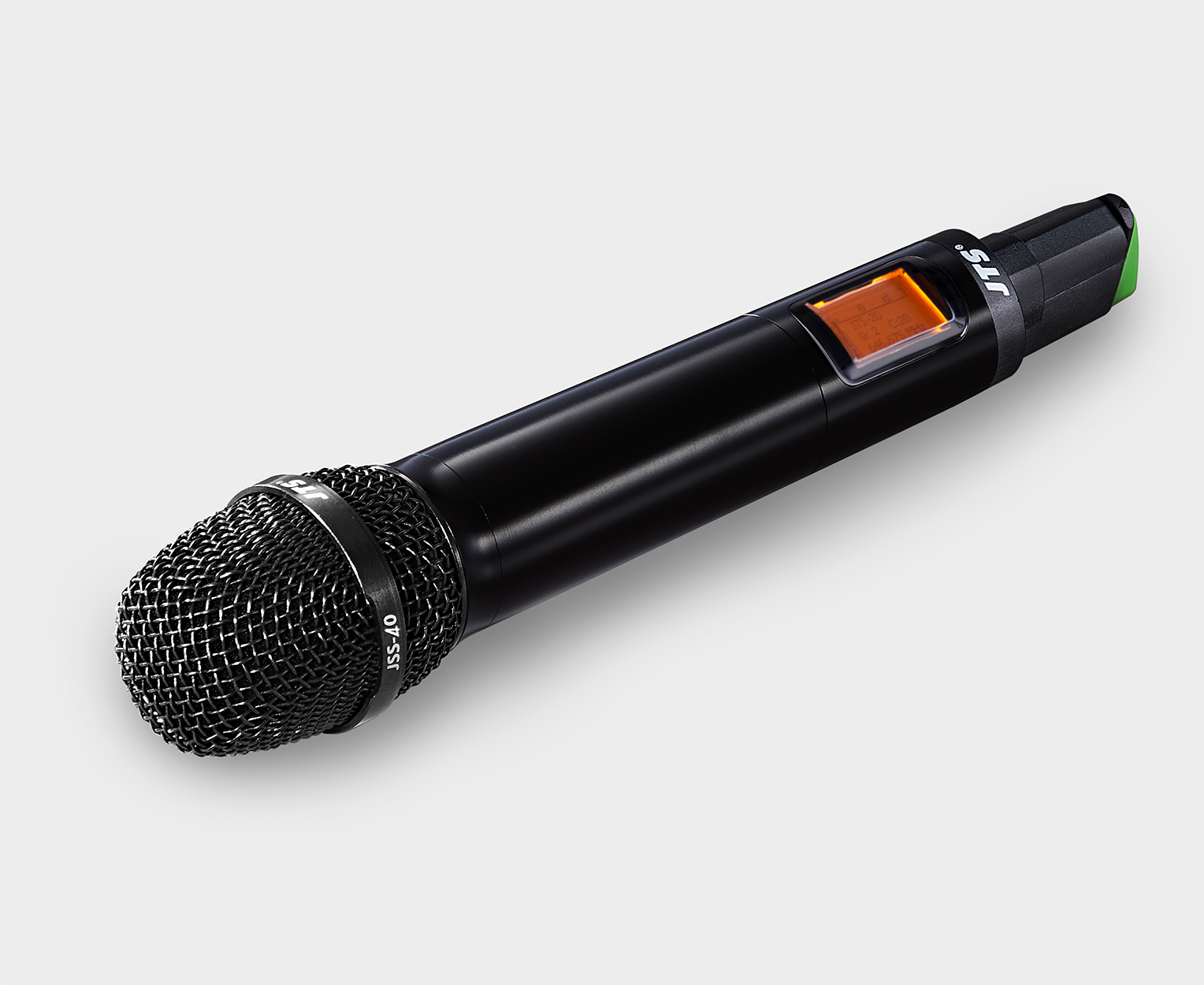

JSS-40

Frequency Preparation	PLL Synthesized Control
Carrier Frequency Range	UHF 470~960 MHz
Bandwidth	108MHz Wideband (MAX)
RF Outputs	Low / High
Stability	<0.005%
Frequency Deviation	±48KHz (Peak)
LCD Diplay	Group, Channel, Frequency, Battery Status, RF Power, Sensitivity, Device ID, User Name, Low Cut
Controls	Power ON/OFF, Frequency, Group, Sensitivity, Low Cut, Device ID, Remoset, RF Power, Contrast, Light Time, User Name,Reset, KeyLock, Mute, Reset
Spurious Emissions	<-50 dBC
Audio Frequency Response	50 to 18k Hz
Capsule Module	Interchangeable
Battery	AA NiMH x2
Dimension	50mm(W)x253mm(H)x35.5mm(D)
Weight	350g
Note	Actual product specifications may vary depending on region.

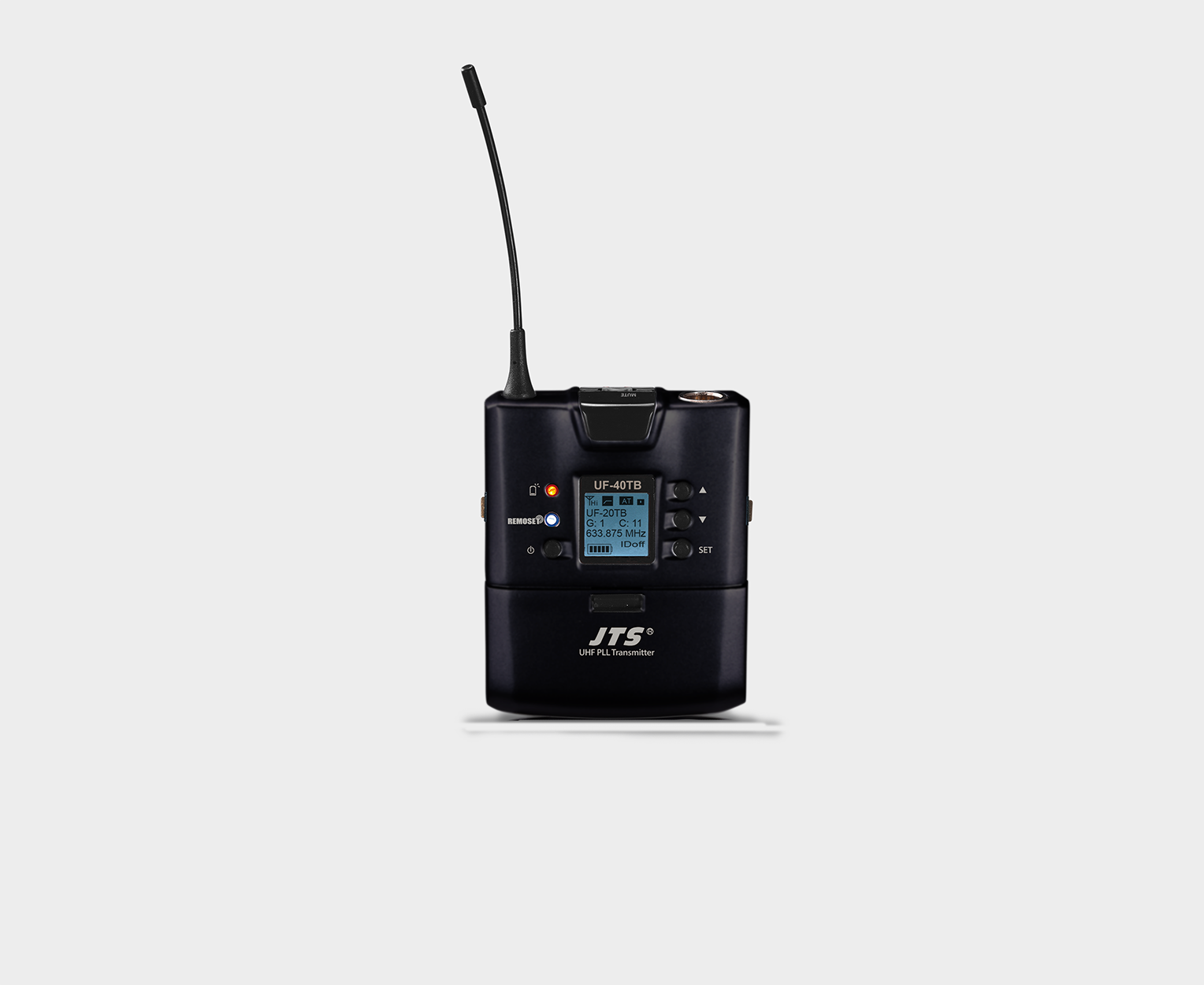

UF-40TB

Frequency Preparation	PLL Synthesized Control
Carrier Frequency Range	UHF 470~960 MHz
Bandwidth	108MHz Wideband (MAX)
RF Outputs	Low / High
Stability	<±10KHz
Frequency Deviation	±48KHz (Peak)
Chassis	Aluminium alloy
LCD Diplay	Group, Channel, Frequency, Battery Status, RF Power, Sensitivity, Device ID, User Name, Low Cut
Controls	Power ON/OFF, Frequency, Group, Sensitivity, Low Cut, Device ID, Remoset, RF Power, Contrast, Light Time, User Name,Reset, KeyLock, Mute, Reset, Attenuate
Input Connector	4P Mini XLR
Spurious Emissions	< -50 dBC
Audio Frequency Response	50 to 18k Hz
Battery	AA NiMH x2
Dimension	62mm(W)x80.3mm(H)x22.6mm(D)
Weight	93g
Note	Actual product specifications may vary depending on region.
