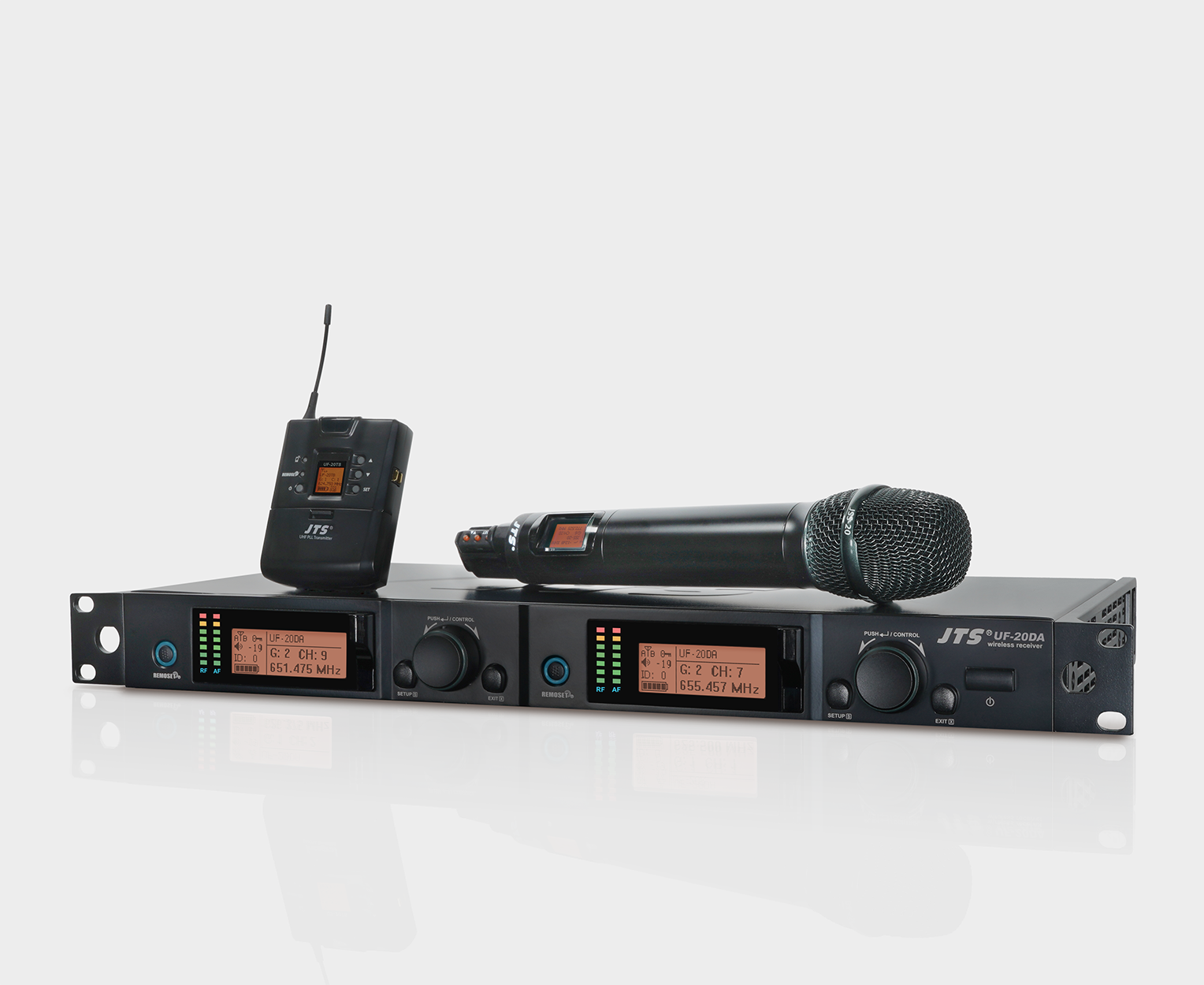

The JTS UF-20 series has been a trusted choice in installed and live production environments for many years. Now JTS raises the bar with the all-new UF-20DA wideband receiver, delivering everything users value in the UF-20R, enhanced with DANTE integration for seamless networked audio and control.
LIVE PERFORMANCE
| UF-20DA |
|
Frequency Preparation |
PLL Synthesized Control |
| Frequency Setting | JTS patented obstacles-free RF REMOSET |
| Carrier Frequency Range | UHF 470~960 MHz |
| Channel | Dual |
| Bandwidth | 75MHz Wideband(MAX) |
| S / N Ratio | > 108dB (A) |
| T.H.D | <0.5% @ 1KHz |
| Chassis | 1U standard metal chassis |
| Preset Channels / Group |
* From group 1 ~ 15 up to 63 interference-free compatible channels. |
| Display | LCD |
| Display Contents | Group, Channel, Frequency, Antenna A/B ,RF/AF Level Meter, Mute Display, Transmitter Battery Status, REMOSET ID Number, User Name, Squelch |
| EQ | Low cut, Hi freq Boost |
| Sensitivity | 6dBμV, at S / N> 80dB |
| Receiving Mode | True diversity |
| Audio Output Level | Maximum 6dBu |
| XLR AF Output Impedance | 150/600Ω (mic/Line) |
| Frequency Response | 50Hz ~ 18kHz, with high-pass filter |
| Squelch | Pilot Tone & Noise Mute |
| Power Supply | 100 ~ 240V or 12V DC |

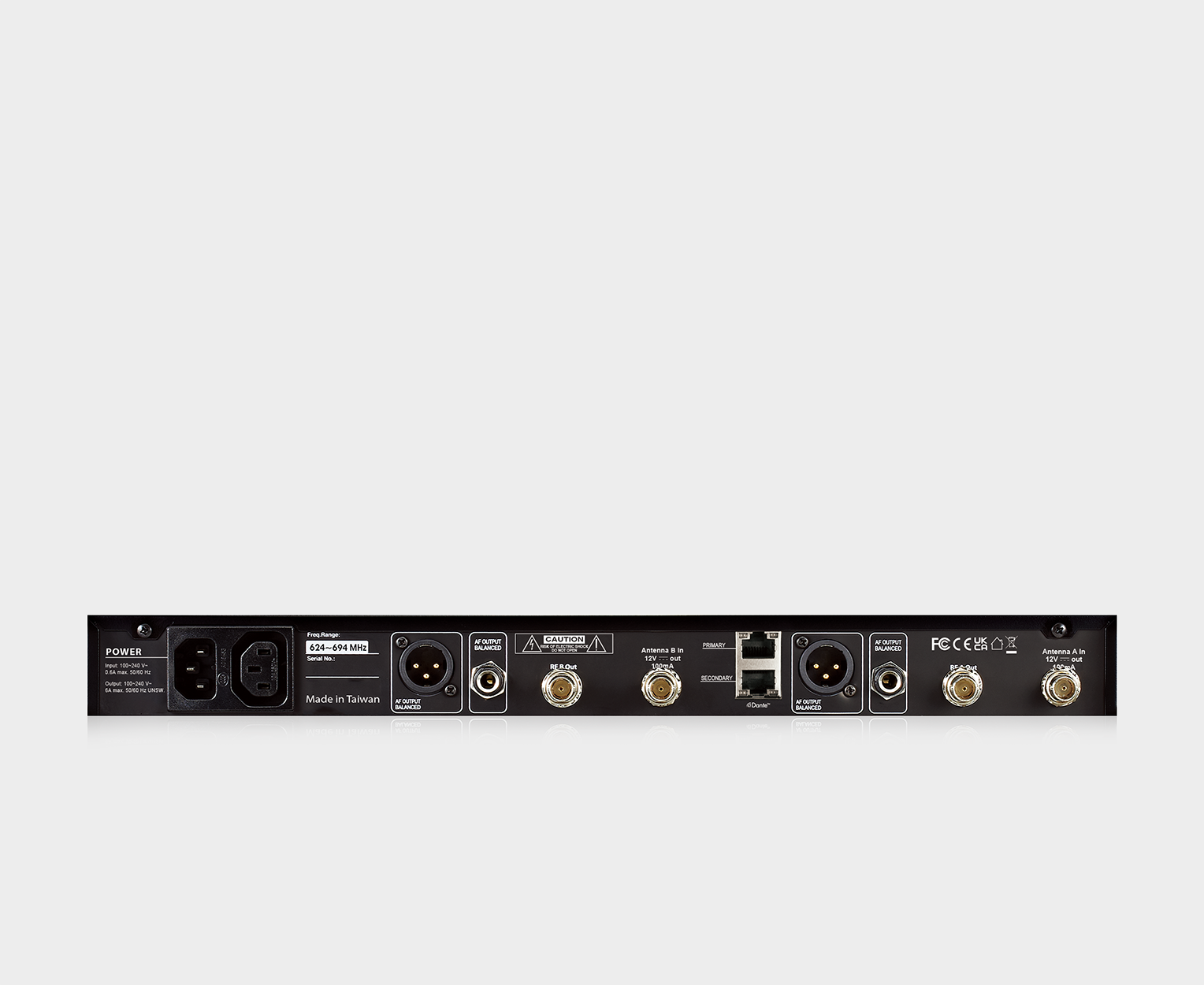

| Output Connector | 2 XLR Balanced Socket 2 Ø6.3mm Unbalanced phone jack |
| Network Interface | Dual Port Ethernet, Dante Digital Audio |
| Dimension (m / m) | 480mm (W) 45Mmm (H) 260mm (D) |
| Notes | Actual product specifications may vary depending on model and region. |

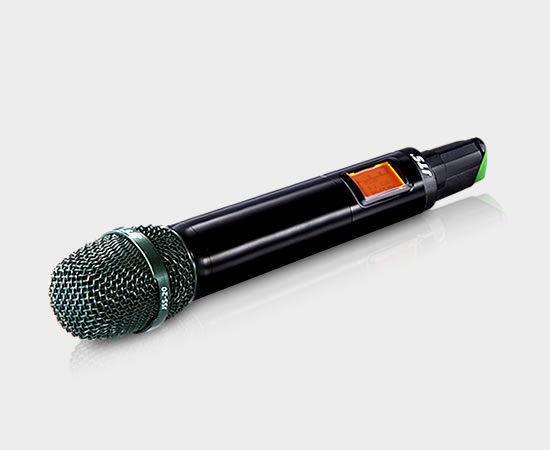

| JSS-20 |
| Frequency Preparation | PLL Synthesized Control |
| Carrier Frequency Range | UHF 470~960 MHz |
| Bandwidth | 60~75MHz Wideband |
| RF Outputs | Low / High |
| Stability | < ±10KHz |
| Frequency Deviation | ±48KHz (Peak) |
| LCD Display | Group, Channel, Frequency, Battery Status, User Name, GAIN Adjust |
| Controls | Power ON / OFF, AF Level, Frequency (Up / Down), Lock-on Mode, REMOSET ID Pairing, RF Output Adjust |
| Spurious Emissions | <-50 dBC |
| Audio Frequency Response | 50Hz ~ 18k Hz |
| Capsule Module | Interchangeable |
| Battery | AA NiMH x2 |
| Dimensions | 50mm (W) x253mm (H) x35.5mm (D) |
| Weight | 350g |
| Notes | Actual product specifications may vary depending on model and region. |
| UF-20TB |
| Frequency Preparation | PLL Synthesized Control |
| Carrier Frequency Range | UHF 470~960 MHz |
| Bandwidth | 60~75MHz Wideband |
| RF Outputs | Low / High |
| Stability | < ±10KHz |
| Frequency Deviation | ± 48KHz (Peak) |
| Chassis | Aluminium alloy |
| LCD Display | Group, Channel, Frequency, Battery Status, User Name , GAIN Adjust |
| Controls | Power ON/OFF, AF Level, Frequency (Up/ Down), Lock-on Mode, REMOSET ID Pairing, RF Output Adjust |
| Output Connector | 4P Mini XLR |
| Spurious Emissions | <-50 DBC |
| Audio Frequency Response | 50Hz ~ 18k Hz |
| Battery | AA NiMH x2 |
| Dimensions | 62mm (W) x80.3mm (H) x22.6mm (D) |
| Weight | 93g |
| Notes | Actual product specifications may vary depending on model and region. |
