R-2/UT-88G3 System NEW

JTS brand new design R-2 miniature wireless receiver with 6.3 Mono plug provides revolutionary using experience and sound quality in the microphone industry. Compact size and affordable price are the two advantages for the latest R-2 to replace traditional wireless receivers. Together with UT-88G3 guitar/winds/accordion transmitter makes this combination your top choice for wireless instrument system.

R-2 >>
* Up to 81 selectable channels.
* Designed with LCD display.
* Suitable for home karaoke, small press release, stage performance.
* Designed with LCD display.
* Equipped with rechargeable lithium battery.
* Compatible with TH-1D handheld transmitter.

- - -

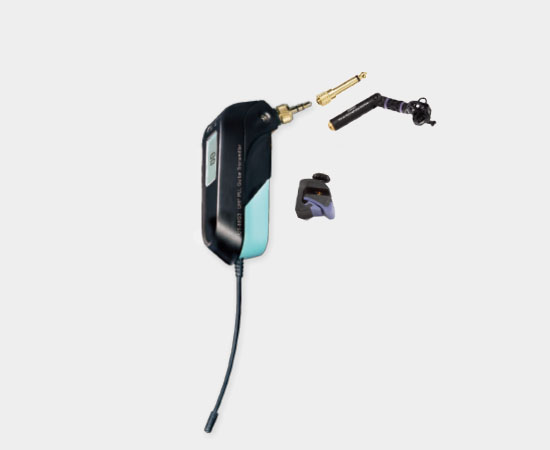

UT-88G3 >>
* The UT-88G3 is a renewed mini transmitter.
* Up tp 81 preset selectable channels.
* Advanced circuit design minimizes noise level and maximizes available channels in a given bandwidth.
* 36 MHz bandwidth compatible with R-2 wireless receiver, WA-8 all-in-one portable wireless active
speaker, and WA-1 portable sound system.
* With various accessories this transmitter can work with brass, string, accordion besides guitar.
* Available in green, grey and almond color

FCC CE

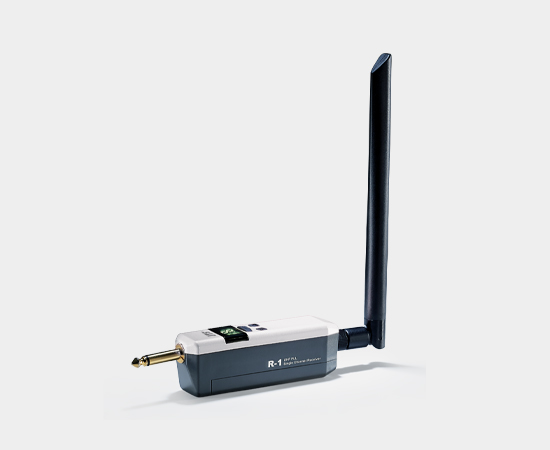

R-1
UT-88G3

PRODUCT SERIES

R-2

Miniature Wireless Receiver

UT-88G3

UHF PLL Guitar/Winds/Accordion Transmitter

WHAT YOU GETIS SUITABLE FOR

INSTRUMENT

INSTRUMENT

LIVE PERFORMANCE

LIVE PERFORMANCE

SPECIFICATIONS

R-2

Frequency Preparation

PLL Synthesized Control
Carrier Frequency Range UHF 470~960 MHz
S / N Ratio > 100dB(A)
T.H.D <0.6% @ 1KHz
Display LED
Display Contents AF Status
Controls  Power On/Off, Channel
Audio Output Level -15dB
AF Output Impedance 600Ω
Squelch Pilot Tone & Noise Mute
Output Connector 6.3mm Mono Plug
Power Supply 5VDC/500mA
Dimension (m / m) 24.5mm(D)*33.2mm(H)* 10mm(W)
Notes

Actual product specifications may vary depending on region.

UT-88G3
Frequency Preparation PLL Synthesized Control
Carrier Frequency Range 470~960 MHz
Frequency Setting Utrasonic / Remoset U (Receive)
RF Outputs Maximum 10mW
Frequency Deviation ±48KHz
Spurious Emissions <-50 dBC
Function Power On/Off, Mute, Group, Channel, Frequency, Sensitivity, Key Lock
Display LCD
Input Connector 3.5mm Plug (6.35mm Adapter)
Battery LR3, AAA x 1
Note Actual product specifications may vary depending on model and region



DOWNLOAD

USER GUIDES
R-2 UT-88G3-04
