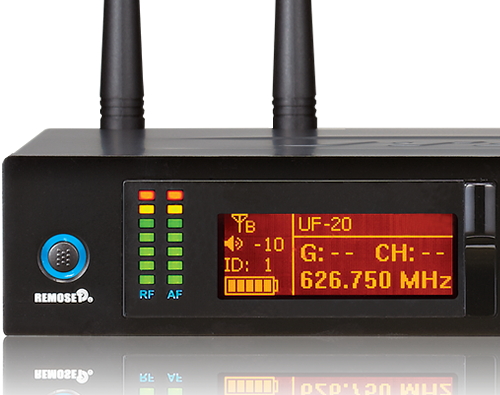

UF-20S

* UHF True diversity technology renders 200-480 meters of operation distance
* Maximum 2400 to 3000 selectable frequencies across 60 to 75 MHz
* Preset 15 groups each of up to 63 compatible channels
* User programmable 6 groups each of 64 channels
* Free space scan function
* JTS Patented obstacle-free RF
function synchronizes a transmitter by pushing a button
* JTS LCX circuit design technology minimizes companding noise

NEWEST FEATURE:
* The is now not only sends the
frequency data but also transmitter’s RF power, sensitivity, low cut, key lock and user's name.
* RF “NO SIGNAL” alert function.
* AF “MUTE” alert function.
* Transmitter “LOW BATTERY” alert function.
* Built in equalizer

FCC CE REMOSET R
UF-20S

PRODUCT SERIES

UF-20S System

Professional Single Channel Wideband True Diversity System

WHAT YOU GETIS SUITABLE FOR

BROADCAST

BROADCAST

LIVE PERFORMANCE

LIVE PERFORMANCE



2nd Generation
REMOSET

Frequency Data
RF Power
Sensitivity
Low Cut
Key Lock
User’s Name

SPECIFICATIONS

UF-20S

Frequency Preparation

PLL Synthesized Control
Frequency Setting  JTS patented obstacles-free RF REMOSET
Carrier Frequency Range UHF 470~960 MHz
Channel Single
Bandwidth 60~75MHz Wideband
S / N Ratio > 108dB (A)
T.H.D <0.5% @ 1KHz
Chassis 1U/2U standard metal chassis
Preset Channels / Group

* From group 1 ~ 15 up to 63 interference-free compatible channels.
* 844 preset channels / group and 3000 selectable frequencies across 63 to 75 Hz Bandwidth.
* User programmable from U1 ~ U6 each of 64 channels reserved.

Display LCD
Display Contents Group, Channel, Frequency, Antenna A / B, RF / AF Level Meter, Mute Display, Transmitter Battery Status, REMOSET ID Number, User Name, Squelch
Sensitivity 6dBμV, at S / N> 80dB
Receiving Mode True diversity
Audio Output Level Maximum 6dBu
Receiving Mode True diversity
Audio Output Level Maximum 6dBu
AF Output Impedance 600Ω
Frequency Response 50Hz ~ 18kHz, with high-pass filter
Squelch Pilot Tone & Noise Mute
Power Supply 100 ~ 240V or 12V DC
Output Connector 1 XLR Balanced Socket
1 Ø6.3mm Unbalanced phone jack

Dimension (m / m) 212mm(W)x44Mmm(H)x213.9mm(D)
Notes Actual product specifications may vary depending on model and region.
