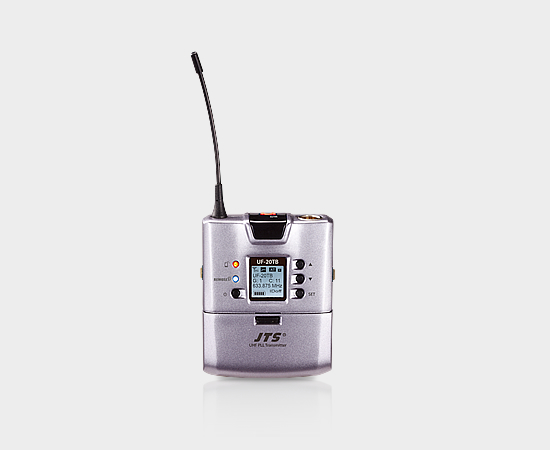

UF-20TB

* 2400 to 3000 selectable frequencies
* Preset 15 groups each of up to 63 compatible channels
* Phase-Locked Loop (PLL) synthesized tune
* Extended dynamic range and smooth frequency response.
* Adjustable transmission power between Low and High
* The panel Lock-On function prevents tampering and RF interruption
* Together with JTS various music instrument mics, headset mics and tie clip mics this bodypack is versatile for all applications.

NEWEST FEATURE:
* It is designed with slot-in charging feature with two AA NiMH rechargeable batteries.

PRODUCT SERIES

UF-20R System

Professional Dual Channel Wideband True Diversity System

UF-20S System

Professional Single Channel Wideband True Diversity System

SPECIFICATIONS

UF-20TB
Frequency Preparation	PLL Synthesized Control
Carrier Frequency Range	UHF 470~960 MHz
Bandwidth	60~75MHz Wideband
RF Outputs	Low / High
Stability	< ±10KHz
Frequency Deviation	± 48KHz (Peak)
Chassis	Aluminium alloy
LCD Display	Group, Channel, Frequency, Battery Status, User Name , GAIN Adjust
Controls	Power ON/OFF, AF Level, Frequency (Up/ Down), Lock-on Mode, REMOSET ID Pairing, RF Output Adjust
Output Connector	4P Mini XLR
Spurious Emissions	<-50 DBC
Audio Frequency Response	50Hz ~ 18k Hz
Battery	AA NiMH x2
Dimensions	62mm (W) x80.3mm (H) x22.6mm (D)
Weight	93g
Notes	Actual product specifications may vary depending on model and region.

DOWNLOAD

USER GUIDES
UF-20TB-05
