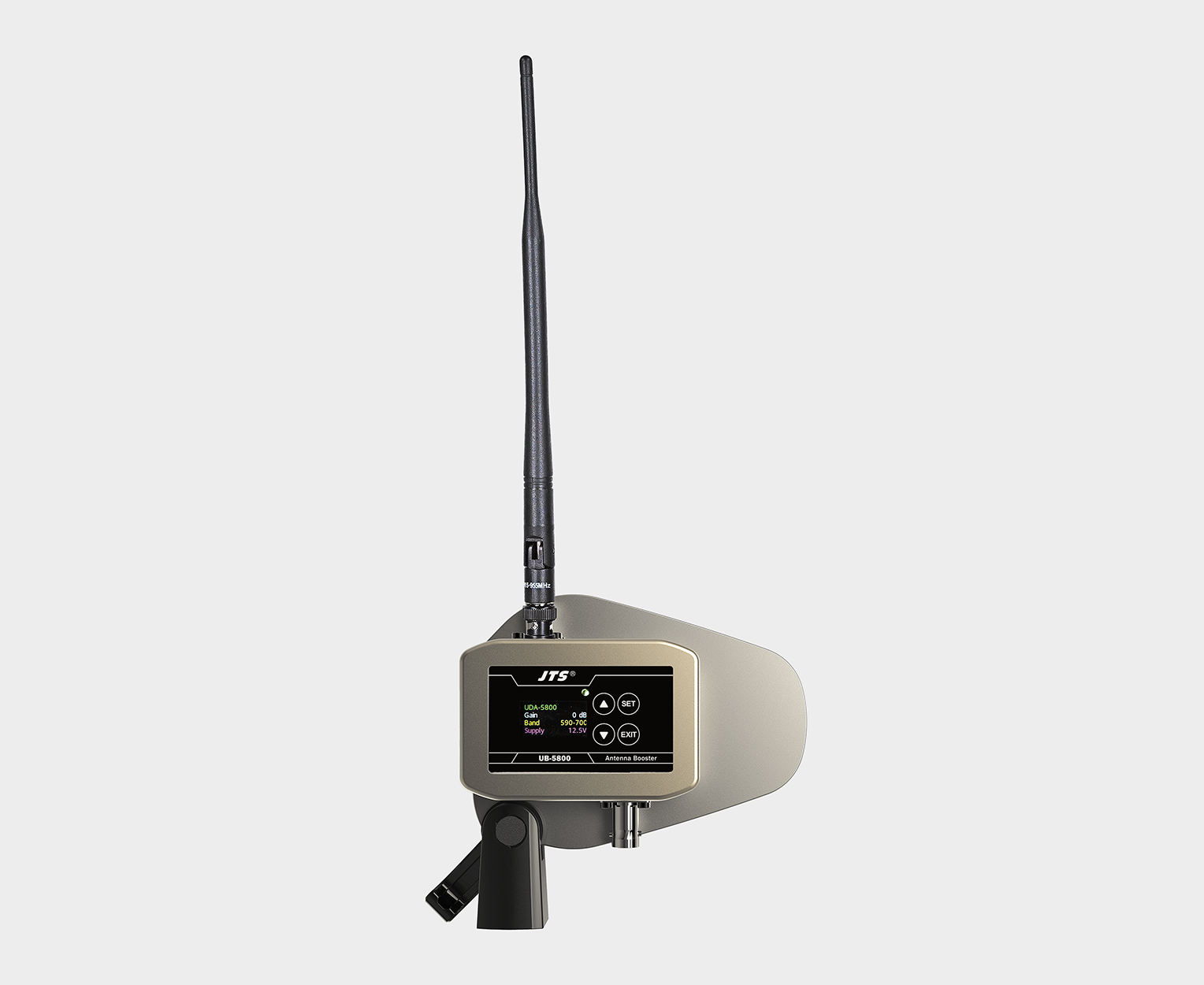

UB-5800 NEW

The JTS UB-5800 is a wideband inline booster that restores signal strength on long RF runs. Gain is adjustable in fine steps, with status on the front LCD and full remote control and power over coax when paired with the UA-5800.

PRODUCT SERIES

UDA-5800

UHF Directional Antenna

UA-5800

UHF Antenna Distributor

WHAT YOU GETIS SUITABLE FOR

LIVE PERFORMANCE

LIVE PERFORMANCE

SPECIFICATIONS

UB-5800

Control	Display menu or remote thru coaxial cable
Gain	-15 ~ +27 dB typical (1 dB step selection)
Bandwidth	470-960 MHz (depending on the variants)
Band	Band Width :60MHz / Step: 10MHz Lo Band : 470-710MHz ; Hi Band : 720-960MHz (Filter Option)
Gain flatness	+/-1 dB
Powering	+12 Vdc/55mA (Green led:0 ~ +13dB; Blue led: -13 ~ -1dB) +12 Vdc/110mA (Red led:+14 ~ +27dB) Orange led: Bypass
Operating voltage range	10~15Vdc
Dimensions	282.5mm(W)*384.5mm(H)

DOWNLOAD

USER GUIDES
UDA-5800 / UB-5800 / UA-5800-01
