SPECIFICATIONS

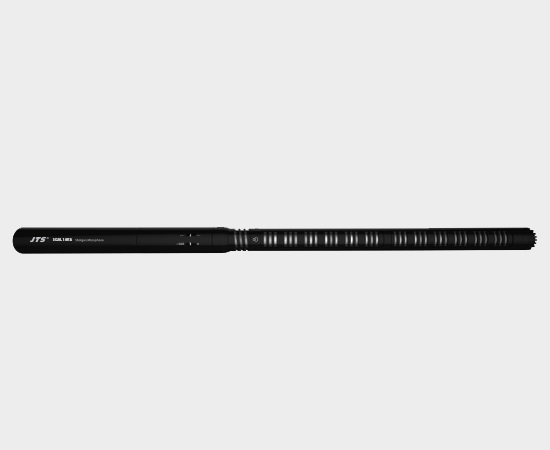

SGM-14KA
Type Electret Condenser
Polar pattern Hypercardioid
Frequency Response 40 to 20,000Hz
Sensitivity(at 1,000Hz) (Phantom / Battery)

-34±3 dB*(20mV) *0dB=1V/Pa
-35±3 dB*(17.8mV)*0dB=1V/Pa

Low Frequency Roll-off 120Hz
Impedance(Phantom / Battery) Rated impedance is 500Ω / 600Ω
Max. SPL for 1% THD (Phantom / Battery) 125 dB / 110 dB
Signal To Noise Ratio 70dB
Power Supply (Phantom / Battery) 9~48VDC / 1.5V AA UM3 R6
Current consumption(Phantom / Battery) ≦2mA / 0.4mA (1200 hours typical)
Output Connector 3P XLR (M)
Length 405.6mm

DOWNLOAD

USER GUIDES
SGM-14 SGM-14KA-04
