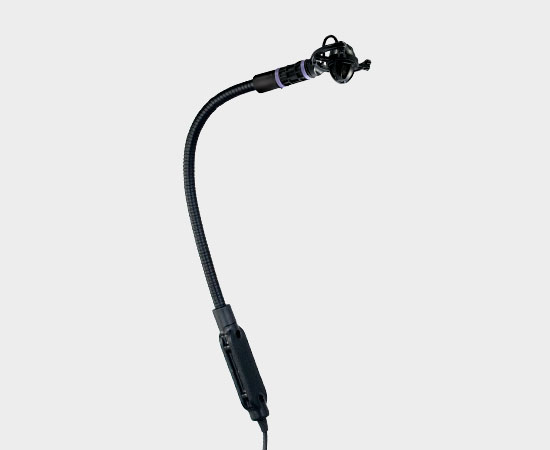

CX-516W

* CX-516W: A wireless version of CX-516.
* Newly added spider suspension isolates unwanted mechanical vibration effectively.
* For most general purpose applications in live performance sound reinforcement.
* Recommended for accordion, wind instrument brass and woodwind, organ cabinet.

CX-516W

WHAT YOU GETIS SUITABLE FOR

INSTRUMENT

INSTRUMENT

SPECIFICATIONS

CX-516W
Connector 4P Mini XLR
Frequency Response 30~18,000 Hz
Polar Pattern Cardioid
Sensitivity (at 1,000Hz)  -67±3 dB* (0.45mV)*0dB=1V/μbar
Impedance 220Ω
Max. SPL for 1% T.H.D. 130 dB

DOWNLOAD

USER GUIDES
CX-516W-03
