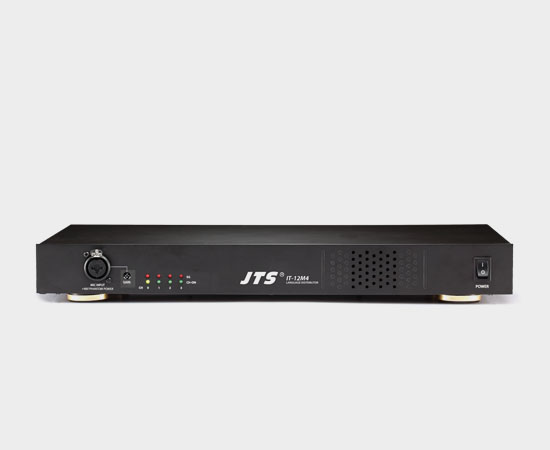

IT-12M4
IT-12M4 is a simplified version of IT-12M. It has 4 audio outputs, external switching power supply.
SPECIFICATIONS
| IT-12M4 | |
| Model | IT-12M4 |
| Audio Input | Ø6.3mm balanced, unbalanced |
| Level | 0.775V |
| Combo XLR Level | 2mV |
| Audio Output | Floor Output: RCA * 2 Symmetrical, RCA * 6 |
| Output Freq-Response | 10 ~ 16,000 Hz |
| T.H.D. | < 0.05% |
| SNR | > 75dBA |
| Crosstalk | > 70dB (1kHz) |
| Dynamic Range | > 85dB |
| Output Load | > 1kΩ |
| Simultaneous Interpretation | 25 pin D-SUB |
| Power Supply | AC 110 ~ 220V/DC 15V |
| System Consumption | 15W |
| Dimension(m/m) | 421mm(W) * 44mm(H) * 213.2mm(D) |
DOWNLOAD
| USER GUIDES | |
| IT-12M4-02 | |
