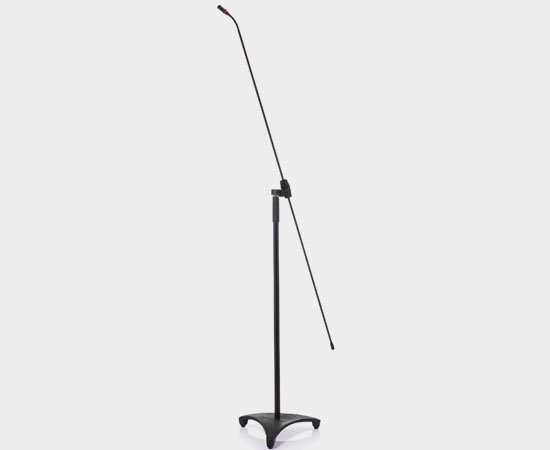

This product has the same mics as GML series with omni-directional (GML-O), cardioid (GML-C) and supercardioid (GML-S) capsule module included. The very light carbon boom makes remote miking an easy job. A cable with mini XLR and XLR on each end is supplied. -10 dB pad and Low cut functions are provided.
Application:
* Choirs
* Presentation
* Also as normal mic stand
FGM-62 Carbon : With mic stand height 62 cm, the rest is identical to FGM-170 Carbon.
| FGM-170 Carbon | |
| Type | Back Electret Condenser |
| Frequency Response | 50~18,000 Hz |
| Polar Pattern | Cardioid, Supercardioid, Omni-directional |
| Sensitivity (at 1,000Hz) | -56±3dB(1.58mV) 0dB=1V/μbar |
| Impedance | 220Ω |
| Max. SPL for 1% T.H.D. | 125 dB |
| Connector | 3P mini XLR (M) |
| Cable Connector | Input: 3P mini-XLR (F) Output: 3P XLR (Power Module) |
| Power Supply | 9-52 VDC phantom power (LED standard Operation voltage 48V) |
| Cable Length | 8m |
| USER GUIDES | |
| FGM-170 Carbon-02 | |
| FGM-170 Carbon-01 | |
Floor Stand Microphone with Carbon Boom with JS-22MXC 1/2" golden plated capsule
The GM-5212T brings studio quantity sound to PA. The JS-22MXC, 1/2” golden plated capsule, is built on a solid brass with accurate processing.
Dual microphone version of FGM-62T and FGM-170T carbon series.
The JTS GM-5212C series 12" gooseneck microphone features a 5/8” - standard 27 thread mic stand adapter for mounting on a mic stand or a mic mounting flange for podium mounting and feature a side exit cable with a XLR(M) connector.
