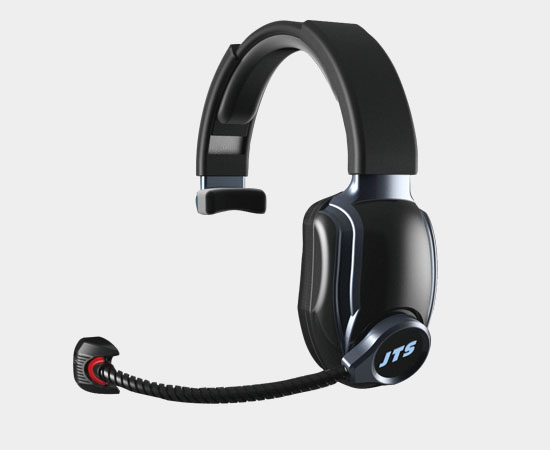

*The newly developed multimedia headset incorporates JTS well accepted headphone speaker technique and miniature dynamic microphone capsule.
*It assures communication quality and reliability in tough environment.
*A talk switch is built implicitly on the headphone for easier operation.
*Connectors for intercom systems from different brands are at choice.
*Single version of headphone
| HPM-515S | |
| Drive Unit | Super thin 40mm diaphragm driver with neodymium magnet |
| Frequency Response | 20~20,000 Hz |
| Impedance | 64 Ω |
| Sensitivity (at 1000Hz) | 104 dB/mW |
| Input Connector | Gold-plated mini stereo phone plug and 1/4" phone adaptor |
| Power Handling | 1W |
| Net Weight | approx. 308 grams (without cord) |
| Type | Dynamic(moving coil) |
| Polar Pattem | cardioid |
| Frequency Response | See figure 1 |
| Sensitivity (1kz) | -40±3 dB*(5mV)*0dB=1V/1Pa |
| Impedance | Rated impedance is 260Ω |
The HPM-535 deploys a pair of 40mm neodymium speaker and brings studio quality to communication or game applications.
