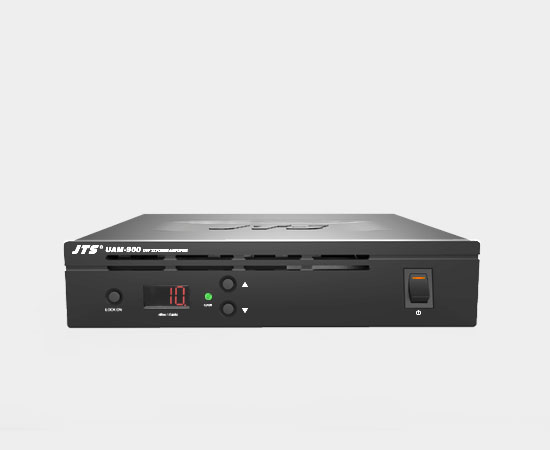

UAM-900

UAM-900 is a full UHF band RF power amplifier. It provides maximum 1W output power (+30dBm).

FCC CE
UAM-900

SPECIFICATIONS

UAM-900
Frequency Range 470~870  Mhz
Amplifier Gain +15dB(Max)
Input Impedance 50 ohm
RF Output 30dBm (Max) (Depends on local regulation)
Input/Output Connector BNC (Female):1 in 4 out
Function 1. Gain Controls:-5~+15dB
2. Input Power Indicator (Threshold:>3dBm)
3. Output Overload Indicator
4. Lock-on Mode
Power Supply DC12V~15V/1A
Dimensions
Notes Actual product specifications may vary
depending on region
