CM-22G12

* Uses JS-22MXC capsule module which brings studio quality sound to installation microphone.
* Detachable capsule design renders easy change of capsule and service.
* High quality gooseneck assures accurate miking.
* Self-contained electronics eliminates the need of external power module.
* Durable materials allow fixed installation.
* CM-22G offers two different lengths, 6 and 12 inches.

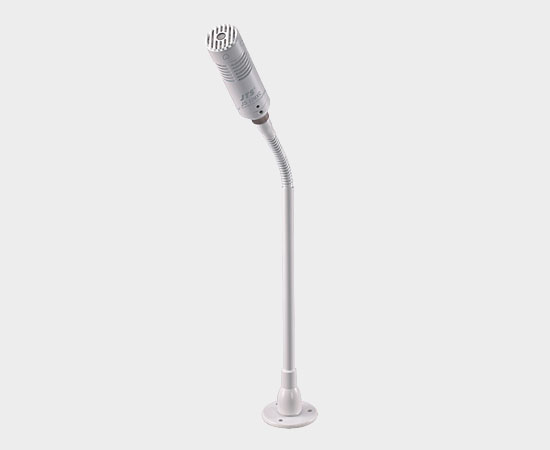

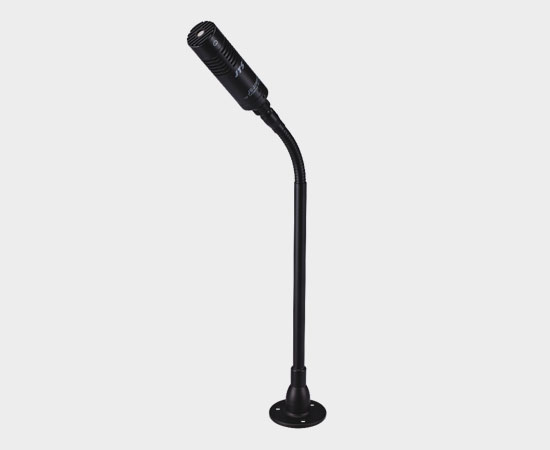

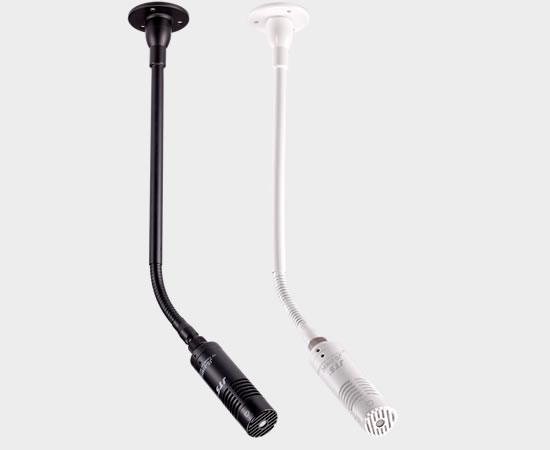

* Black and white color available

CM-22G12-B
CM-22G12-W
CM-22G12

WHAT YOU GETIS SUITABLE FOR

CHOIR

CHOIR

SPECIFICATIONS

CM-22G12
Type Condenser Mic
Frequency Response 20 ~ 20,000 Hz
Polar Pattern Cardioid
Attenuation Switch -10dB
Low Frequency Roll-off 80Hz
Impedance 100Ω
Max. SPL For 1% T.H.D. 140 dB
Signal To Noise Ratio 78dB
Power Supply 36 ~ 52VDC phantom power
Current consumption ≤ 3mA
Output Connector 3P XLR-M type (power module)
Length 399mm

DOWNLOAD

USER GUIDES
CM-22G12-03
