R-2/HW-2 System NEW

JTS brand new design R-2 miniature wireless receiver with 6.3 Mono plug provides revolutionary using experience and sound quality in the microphone industry. Compact size and affordable price are the two advantages for the latest R-2 to replace traditional wireless receivers.

R-2 >>
* Up to 81 selectable channels.
* Designed with LED display.
* Suitable for home karaoke, small press release, stage performance.
* Equipped with rechargeable lithium battery.
* Compatible with TH-1D handheld transmitter.
- - -
HW-2 >>

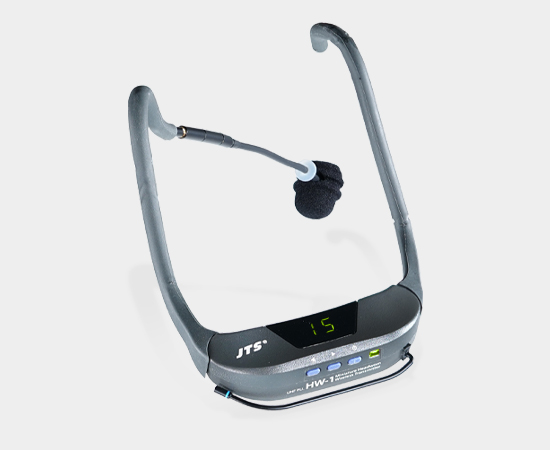

Miniature headworn wireless transmitter with ergonomic design for lighter and more comfortable wearing experience.
* Sub-miniature headset transmitter.
* Ergonomic design creates lighter and more comfortable wearing experience
* Up tp 81 preset selectable channels.
* Designed with LCD display
* Powered by one AAA battery for over 8 working hours.
* Over 60 meter of stable operation distance.
* High signal to noise ratio.
* Standby function provided for stable wireless link.
* Available in black

Good for:
* Stage performance
* School
* Cooperate presentation
* Stage performance

FCC CE
R-1
HW-1

PRODUCT SERIES

HW-2

UHF PLL Miniature Headworn Wireless Transmitter

R-2

Miniature Wireless Receiver

WHAT YOU GETIS SUITABLE FOR

LIVE PERFORMANCE

LIVE PERFORMANCE

VOCAL

VOCAL

PRESENTATION

PRESENTATION

SPECIFICATIONS

R-2

Frequency Preparation

PLL Synthesized Control
Carrier Frequency Range UHF 470~960 MHz
S / N Ratio > 100dB(A)
T.H.D <0.6% @ 1KHz
Display LED
Display Contents AF Status
Controls  Power On/Off, Channel
Audio Output Level -15dB
AF Output Impedance 600Ω
Squelch Pilot Tone & Noise Mute
Output Connector 6.3mm Mono Plug
Power Supply 5VDC/500mA
Dimension (m / m) 24.5mm(D)*33.2mm(H)* 10mm(W)
Notes Actual product specifications may vary depending on region.



HW-2
Frequency Preparation PLL Synthesized Control
Carrier Frequency Range 470~960 MHz
RF Outputs Maximum 10mW
Stability Frequency ±10KHz
Deviation ±48KHz
Dual 7-Segment Display Channel
Controls Power On/Off, Mute, Channel
Spurious Emissions <-50 dBC
Audio Frequency Response 50~17,000 Hz
Battery LR03, AAA 1.5V
Dimension  30.5mm(W)*23(H)*92mm(D)
Selectable Frequencies Group (MAX) : 9 , Channel (MAX) : 9

DOWNLOAD

USER GUIDES
R-2 HW-2-04
