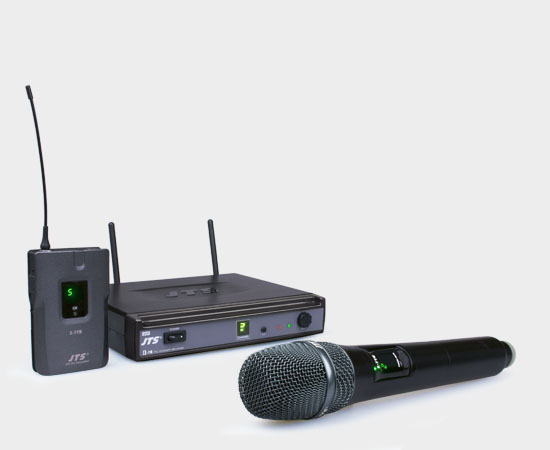

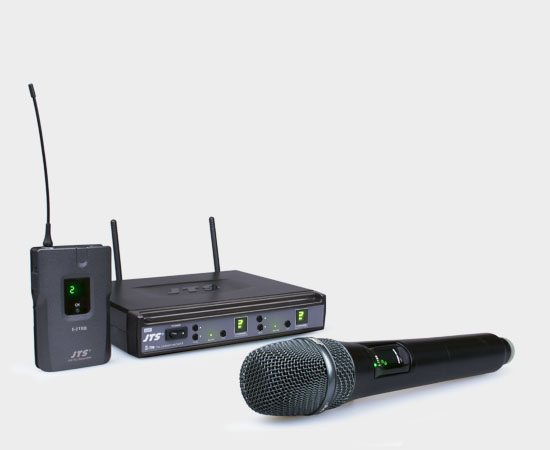

The E-7R/E-7RT / E-7Du / E-7DuT wireless microphone system is of latest wireless circuit design. It provides 4~16 selectable channels. Stable RF link and good audio performance are assured. 7 segments display makes operation easy. The system is of very affordable price.
|

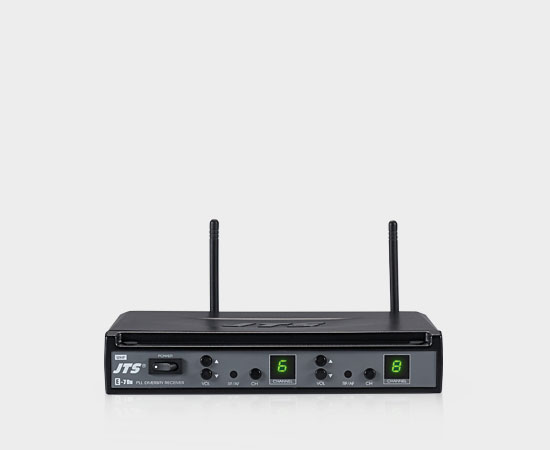

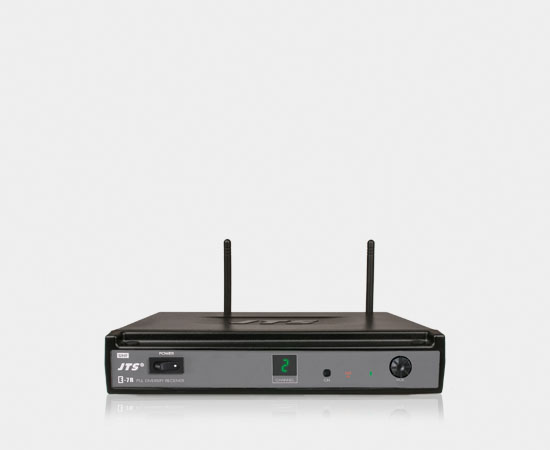

E-7R / E-7RT (Single) E-7Du / E-7DuT (Dual) |
| Frequency Preparation | PLL Synthesized Control |
| Carrier Frequency Range | 470~960 MHz |
| 3x Frequency range | 856.100 - 864.900 MHz (F band) 606.500 - 629.900 MHz (U band) 721.500 - 748.375 MHz (G band) 658.125 - 678.500 MHz (D band) 487.125 - 506.500 MHz (I band) 502.000 - 694.000 MHz (T band) |
| S/N Ratio | >100dB |
| T.H.D. | <0.6%@1KHz |
| Display Contents | Channel, RF/AF Status |
| Controls | Power On/Off, Channel Selecting, Audio Level |
| Audio Output Level | -15dB |
| AF Output Impedance | 600Ω |
| Squelch | Pilot Tone & Noise Mute |
| Operation Voltage |
12V 150mA (E-7R / E-7RT) / 12V 250mA (E-7Du / E-7DuT) |
| Output Connector | 1 Ø6.3mm balanced phone jack |
| Dimension (mm) | 210mm(W)* 40mm(H)* 170mm(D) |

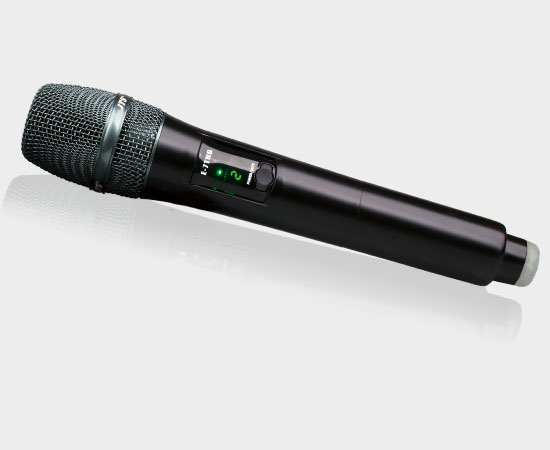

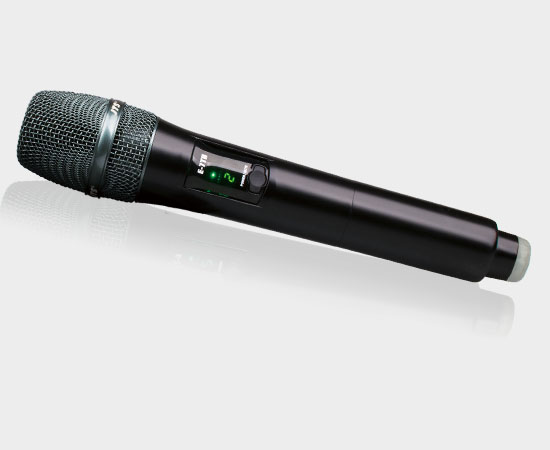

| E-7TH / E-7THT / E-7THD / E-7THDT |
| Frequency Preparation | PLL Synthesized Control |
| Carrier Frequency Range | 470~960 MHz |
| 3x Frequency range | 856.100 - 864.900 MHz (F band) 606.500 - 629.900 MHz (U band) 721.500 - 748.375 MHz (G band) 658.125 - 678.500 MHz (D band) 487.125 - 506.500 MHz (I band) 502.000 - 694.000 MHz (T band) |
| StabilityFrequency | <±10KHz |
| Deviation: | ±48KHz (Peak) |
| Display Contents | Channel, Battery Status, Power On/Off, Mute |
| Controls | Power On/Off, Channel, Mute |
| Spurious Emissions | <-50 dBC |
| Audio Frequency Response | 50Hz~18KHz |
| Battery | UM3, AA Alkaline x2 |

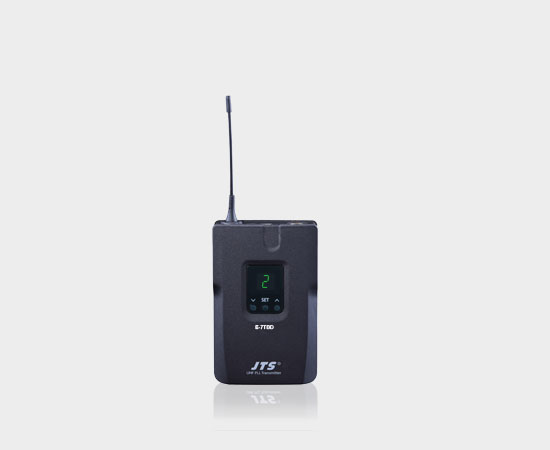

| E-7TB / E-7TBT / E-7TBD / E-7TBDT |
| Frequency Preparation | PLL Synthesized Control |
| Carrier Frequency Range | 470~960 MHz |
| 3x Frequency range | 856.100 - 864.900 MHz (F band) 606.500 - 629.900 MHz (U band) 721.500 - 748.375 MHz (G band) 658.125 - 678.500 MHz (D band) 487.125 - 506.500 MHz (I band) 502.000 - 694.000 MHz (T band) |
| StabilityFrequency | <±10KHz |
| Deviation: | ±48KHz (Peak) |
| Display Contents | Channel, Battery Status, Power On/Off, Mute |
| Controls | Power On/Off, Channel, Mute |
| Input Connector | 4P mini XLR |
| Spurious Emissions | <-50 dBC |
| Audio Frequency Response | 40Hz~18KHz |
| Battery | UM3, AA Alkaline x2 |
| USER GUIDES | |
| E-7R(Du) System-09 | |
