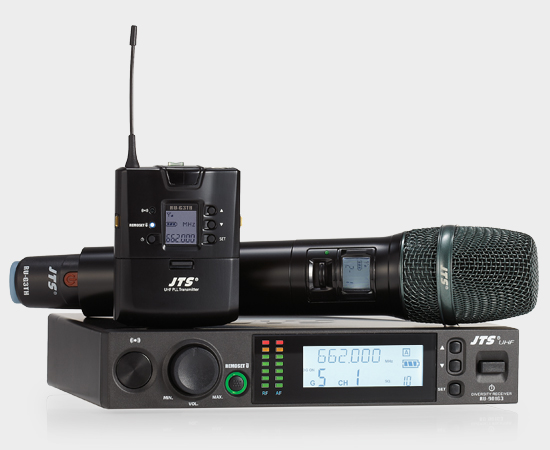

RU-901G3 is the 3rd generation true diversity system. It inherits the reliability in electronic circuit design and mechanical design of the legendary US-901. To cope with the development of the technology it features function. It synchronizes a transmitter with data of frequency, gain control, ID and so on by pushing a button. Scan function is also provided.
* RU-901G3 is for medium and large venue

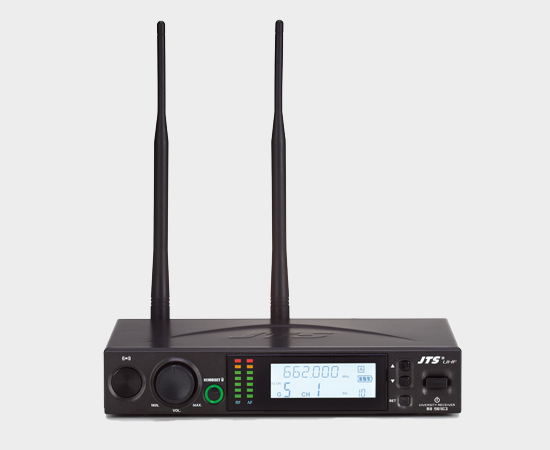

| RU-901G3 |
|
Frequency Preparation |
PLL Synthesized Control |
| Carrier Frequency Range | UHF 470~960 MHz |
| Frequency Setting | Remoset U Ultrasonic |
| Receiving Mode | True Diversity |
| Bandwidth | 36MHz |
| S/N Ratio | > 105dB |
| T.H.D | <0.6% @ 1KHz |
| Sensitivity | -95dBm, S/N>80dB |
| CMRR | >80 dB |
| Audio Frequency Response | 50Hz~18KHz±2dB |
| Antenna | BNC (F) |
| Antenna Bosster Power | DC12~15V/100mA |
| Display | LCD |
| Display Contents | Group, Channel, Frequency, Battery Status, Antenna A/B, AF Meter(LED BAR), RF Meter (LED BAR) |
| Controls | Power ON/OFF, Group, Channel, Frequency, Audio Level, Lock-on, Volume, Output Pad, Frequency Scan (ON/OFF) |
| Audio Output Level | Ref:±22.5KHz Dev@1KHz Toneψ6.3 Phone Jack:-10dBV XLR Jack:-4dBV(Line)、-24dBV(MIC) |
| AF Output Impedance | 600Ω |
| Squelch | Pilot Tone & Noise Mute |

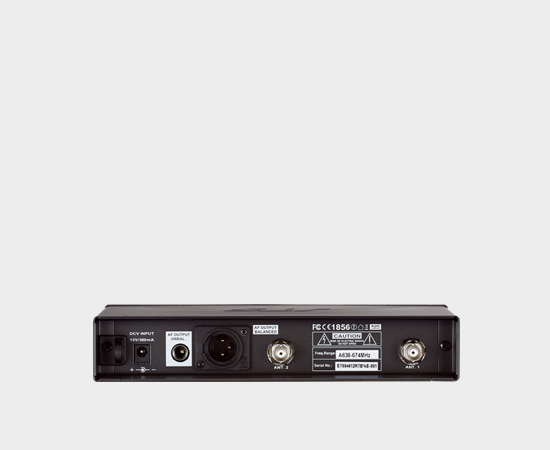

| Output Connector | Balanced XLR Socket x1 / Unbalanced φ6.3mm PHONE JACK x1 |
| Power Supply | DC12~15V/500mA |
| Dimension (m / m) | 212.3mm(W)*38.3mm(H)* 144mm(D) |
| Notes | Actual product specifications may vary depending on region. |

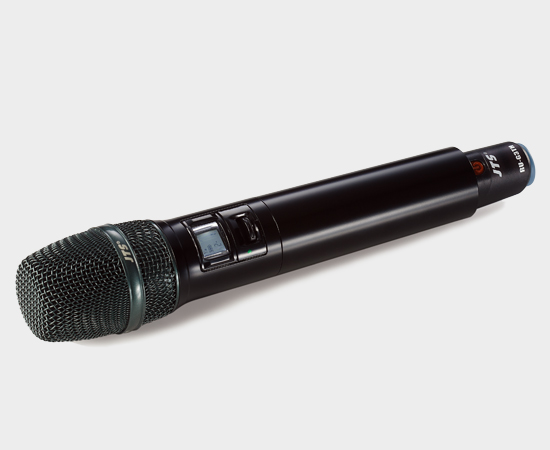

| RU-G3TH |
| Frequency Preparation | PLL Synthesized Control |
| Carrier Frequency Range | UHF 470~960 MHz |
| Frequency Setting | Remoset U Ultrasonic |
| RF Outputs | Low/High |
| Stability | <±10KHz@ Fc |
| Frequency Deviation | ±48KHz |
| Spurious Emissions | <-50dBc |
| Display | LCD+LED |
| Controls | Power ON/OFF, Mute ON/OFF, Group, Channel, Frequency, GAIN Adjust, Auto Power Off Adjust, Lock-on Mode |
| Battery | UM3, AA x2 |
| Slot-in Charging | Yes |
| Dimensions | 50(W) x 253(H) x 35.5(D) |
| Notes | Actual product specifications may vary depending on model and region. |
| RU-G3TB |
| Frequency Preparation | PLL Synthesized Control |
| Carrier Frequency Range | UHF 470~960 MHz |
| Frequency Setting | Remoset U Ultrasonic |
| RF Outputs | Low/High |
| Stability | <±10KHz@ Fc |
| Frequency Deviation | ±48KHz |
| Spurious Emissions | <-50dBc |
| Display | LCD+LED |
| Input Connector | MINI XLR |
| Controls | Power ON/OFF, Mute ON/OFF, Group, Channel, Frequency, GAIN Adjust, Auto Power Off Adjust, Lock-on Mode |
| Battery | UM3, AA x2 |
| Slot-in Charging | Yes |
| Dimensions | 62(W) x 80.3(H) x 22.6(D) |
| Notes | Actual product specifications may vary depending on model and region. |

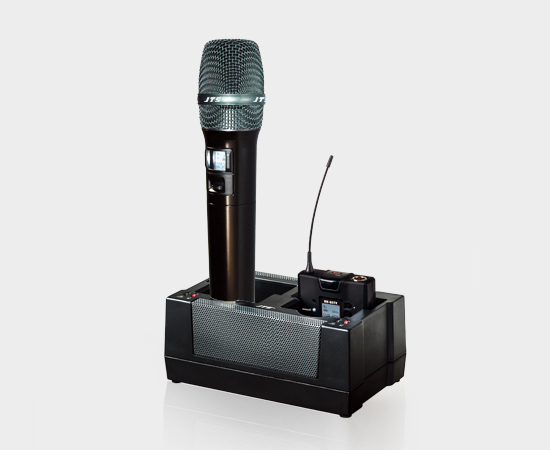

| G3CH-2 (Option) |
| Input | AC 100~240V, 0.4A max |
| Output | DC 12V, 1A |
| LED Indicator Full Charged / Standby | Green |
| Charging | Flash Green |
| Fault | Flash Red |
| Charging Time | 5 hours |
