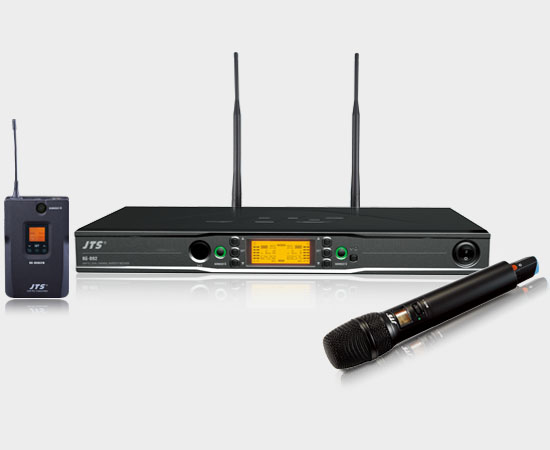

992(T) System

RU-992 (RU-992T) system is a full rack version of RU-8012DB (RU-8012DBT) series with JTS 2nd generation wireless technology. To cope with the squeezed radio spectrum, the system provides more compatible channels within limited bandwidth. The patent pending REMOSET sends the scanned channel data to transmitter by pushing a button. To meet critical audio demand general noise and hiss noise have been reduced to an extremely low level. 100 meter operation range meets most demand from most applications. To be environment friendly an integrated charger is available on option.

PRODUCT SERIES

RU-992(T)

UHF PLL Dual Channel Diversity Receiver

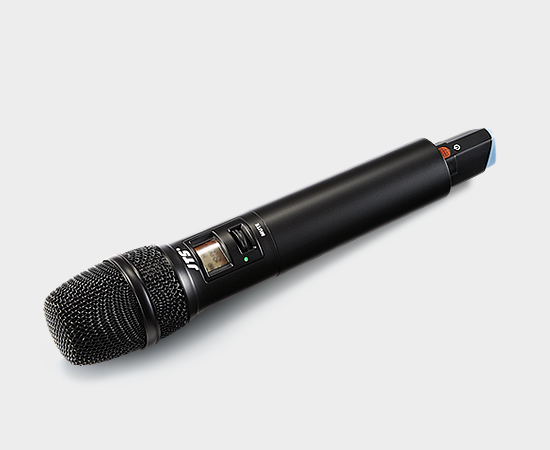

RU-850LTH(T)

UHF PLL Handheld Transmitter

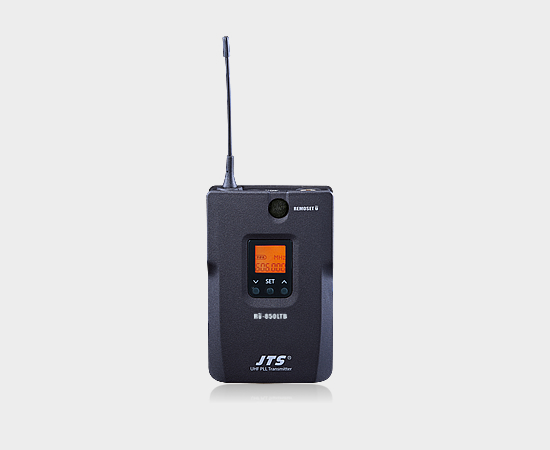

RU-850LTB(T)

UHF PLL Body-Pack Transmitter

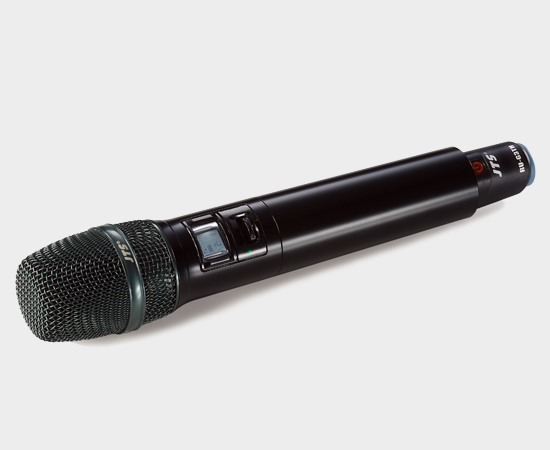

RU-G3TH(T)

UHF PLL Handheld Transmitter

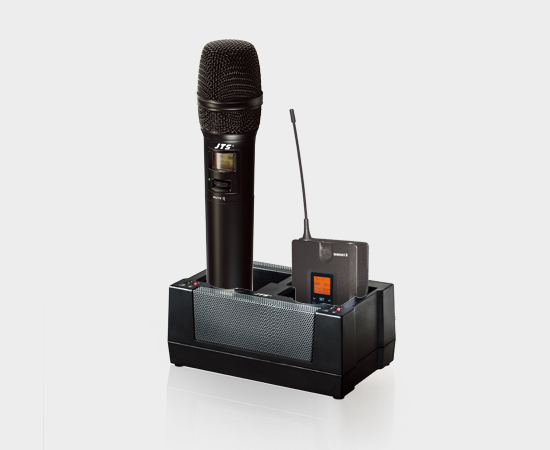

850CH-2

Charger For RU-850LTH & RU-850LTB

WHAT YOU GETIS SUITABLE FOR

CONFERENCE

VOCAL

PRESENTATION

SPECIFICATIONS

RU-992 / RU-992T

Frequency Preparation	PLL Synthesized Control
Carrier Frequency Range	470~960 MHz
3x Frequency range	856.100 - 864.900 MHz (F band) 606.500 - 629.900 MHz (U band) 721.500 - 748.375 MHz (G band) 658.125 - 678.500 MHz (D band) 487.125 - 506.500 MHz (I band) 502.000 - 694.000 MHz (T band)
Frequency Setting	Ultrasonic / REMOSET (Transmit)
Receiving Mode	Antenna Diversity
Bandwidth	36MHz
S/N Ratio	>100dB(A)
T.H.D	<0.6%@1KHz
Sensitivity	-95dBm,S/N>80dB
Rejection Ratio	>80 dB
Frequency Response	50Hz~16KHz±2dB
Antenna Type	BNC Socket
Antenna Booster Power	DC12V/100mA
Display	LCD
Display Contents	Group, Channel, Frequency, Battery Level, Antenna A/B, Mute Display, AF Meter, RF Meter, Frequency Scan, Audio Level, Volume
Controls	Power ON/OFF, Group, Channel, Frequency, Mute Display, Key Lock, Volume, Output Attenuaiton(XLR), Frequency Scan(ON/OFF)
Audio Output Level	Ref/ ±22.5KHz Dev@1KHz Tone Ø6.3 Phone Jack/ -10dBV XLR Jack/ -4dBV(Line) ˴ -24dBV(MIC)
Audio Output Impedance	600Ω
Squelch	Pilot Tone & Noise Mute
Output Connector	2 independent balanced XLR and 2 Ø6.3mm unbalanced.
Power Supply	DC12~15V/300mA
Dimension (mm)	420mm(W)* 44mm(H)* 211mm(D)
Notes	Acutal product specifications may vary depending on region

RU-850LTH / RU-850LTHT

Frequency Preparation	PLL Synthesized Control
Carrier Frequency Range	470~960MHz
3x Frequency range	856.100 - 864.900 MHz (F band) 606.500 - 629.900 MHz (U band) 721.500 - 748.375 MHz (G band) 658.125 - 678.500 MHz (D band) 487.125 - 506.500 MHz (I band) 502.000 - 694.000 MHz (T band)
Frequency Setting	REMOSET U(Receive)
RF Outpus	Low / High
Stability	<±10KHz@Fc
Frequency Deviation	±48KHz
Spurious Emissions	<-50dBc
Function	Mute, Auto Power Off, Sensitivity Adjust, Low Battery
Display	LCD+LED
Controls	Power, Mute, Group, Channel, Frequency, Gain Adjust, Auto Power Off, Key Lock
Battery	UM3, AA x2

RU-850LTB / RU-850LTBT

Frequency Preparation	PLL Synthesized Control
Carrier Frequency Range	470~960MHz
3x Frequency range	856.100 - 864.900 MHz (F band) 606.500 - 629.900 MHz (U band) 721.500 - 748.375 MHz (G band) 658.125 - 678.500 MHz (D band) 487.125 - 506.500 MHz (I band) 502.000 - 694.000 MHz (T band)
Frequency Setting	REMOSET U(Receive)
RF Outpus	Low / High
Stability	<±10KHz@Fc
Frequency Deviation	±48KHz
Spurious Emissions	<-50dBc
Function	Mute, Auto Power Off, Sensitivity Adjust, Low Battery
Display	LCD+LED
Input Connector	4P Mini XR
Controls	Power, Mute, Group, Channel, Frequency, Gain Adjust, Auto Power Off, Key Lock
Battery	UM3, AA x2

RU-G3TH (Option)

Frequency Preparation	PLL Synthesized Control
Carrier Frequency Range	UHF 470~960 MHz
Frequency Setting	Remoset U Ultrasonic
RF Outputs	Low/High
Stability	<±10KHz@ Fc
Frequency Deviation	±48KHz
Spurious Emissions	<-50dBc
Display	LCD+LED
Controls	Power ON/OFF, Mute ON/OFF, Group, Channel, Frequency, GAIN Adjust, Auto Power Off Adjust, Lock-on Mode
Battery	UM3, AA x2
Slot-in Charging	Yes
Dimensions	50(W) x 253(H) x 35.5(D)
Notes	Actual product specifications may vary depending on model and region.

850CH-2 (Option)

Input	AC 100~240V, 0.4A max
Output	DC 12V, 1A
LED Indicator Full Charged / Standby	Green
Charging	Flash Green
Fault	Flash Red
Charging Time	5 hours
