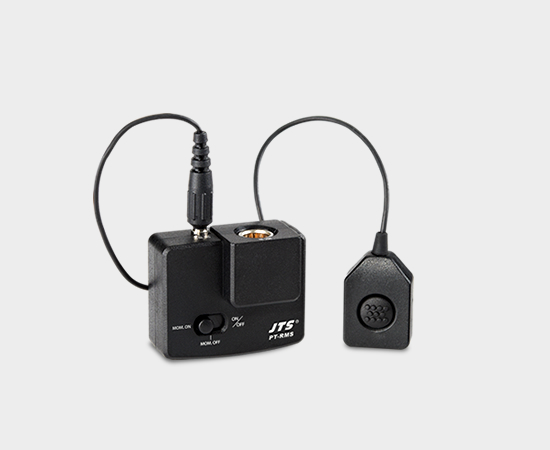

PT-RMS

The PT-RMS is designed to mute a wireless bodypack transmitter by push a button. Mute mode is programmable as ON/OFF, Momentary ON and Momentary OFF. This unit is compatible with all JTS
wireless bodypack transmitters.

PT-RMS

SPECIFICATIONS

PT-RMS (Master)
Input SW IN / 2.5mm stereo jack
MIC IN / 4P Mini XLR(M)
Output 4P Mini XLR(F)
Power Supply +5V from transmitter phantom power
Switch Mode ON/OFF, MOM-ON, MOM-OFF
Dimensions(mm) 48.6*40.9*30.1mm
PT-RMS (Slave)
Output 2.5mm stereo plug
Dimensions(mm) 37.9*22*17.1mm
Switch Audio On/Off Switch

DOWNLOAD

USER GUIDES
PT-RMS-01
