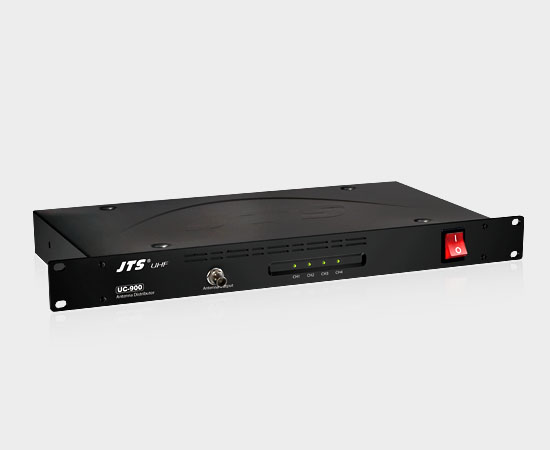

UC-900

This 4 inputs and 1 output antenna combiner is compatible with transmitters like SIEM-2T, TG-
10STX, TG-10GSTX and other transmitters with BNC antenna connecters. It is designed to improve RF performance by reducing intermodulation distortion. This product will also help to save investment in antenna systems. * Provides 4 DC outputs each of 12 V x 800 mA for 4 sets of transmitters.

SPECIFICATIONS

UC-900
Frequency Range	470~970 Mhz
Full System Gain	0dB(±2dB)
VSWR Input / Output	1.5:1
RF Input Power	+20dBm (100mW)
Input Signal Indicator Threshold	+5dBm
Power Consumption	6W
Input/Output Connectors	BNC female (4 input at back,1 output at front) DC female (4 input, Maximum Power OutputLimit at 12V/1A)
Input Voltage	100~240VAC MAX2A 50/60Hz
Dimensions	480 (W) * 45 (H) * 260 (D)
Wieght	2.3kg

DOWNLOAD

USER GUIDES
UC-900-04
