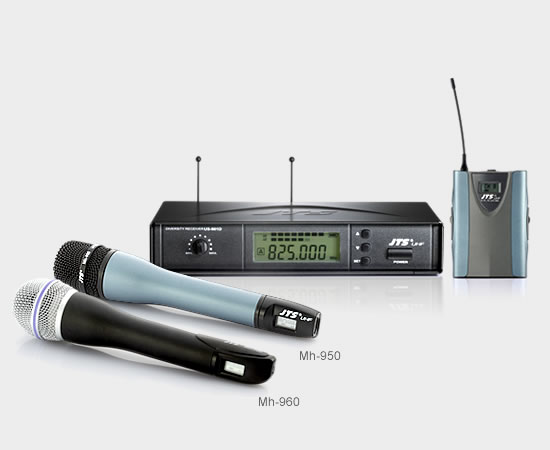

901D System

* Single Transmitter operation.
* PLL synthesized technology with 193 selectable UHF channels.
* True Diversity Technology prevents dropouts in the RF link.
* Equipped with S.A.W. filter for interference free operation.
* Built-in mute, Noise and tone-key squelch.
* ”Lock-on” mode avoids accidental changes of frequency, sensitivity and power-off.
* Equipped with both XLR balanced and Ø6.3mm unbalanced outputs.
* Tuned antennas for the most stable RF reception.
* Compact half rack space design with all metal receiver housing.

PRODUCT SERIES

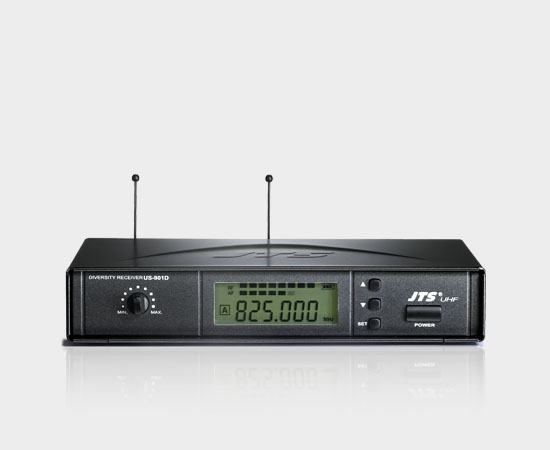

US-901D

UHF PLL Single Channel True Diversity Receiver

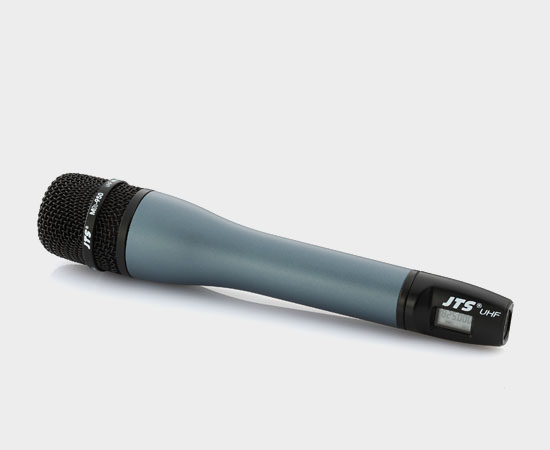

Mh-950

UHF PLL Handheld Transmitter

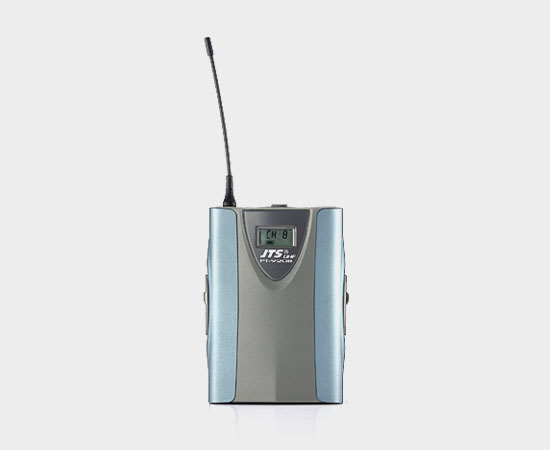

PT-950B

UHF PLL Body-Pack Transmitter

PT-950Bmi

UHF PLL Body-Pack Transmitter (for Musical Instrument)

WHAT YOU GETIS SUITABLE FOR

CONFERENCE

PRESENTATION

SPECIFICATIONS

US-901D

Frequency Preparation	PLL Synthesized Control
Carrier Frequency Range	502~960 MHz
S/N Ratio	> 105dB
T.H.D	<0.6%@1KHz
Display	LCD
Display Contents	Frequency, Antenna A/B, Mute Display, RF/AF Level Meter, Battery Fuel Gauge
Controls	Power On/Off, Frequency Up/Down, Frequency Scan, Audio Level, Lock-on
Audio Output Level	-12dB
AF Output Impedance	600Ω
Squelch	Pilot Tone & Noise Mute
Operation Voltage	12-18 VDC, 200mA
Output Connector	1 XLR Balanced Socket 1 Ø6.3mm Unbalanced phone jack
Dimension(m/m)	212mm (W)* 40mm (H)* 125mm (D)

Mh-950

Frequency Preparation	PLL Synthesized Control
Carrier Frequency Range	502~960 MHz
RF Outputs	10mW
Stability	±10KHz
Frequency Deviation	±48KHz
LCD Display	Frequency, Battery Fuel Gauge, Sensitivity
Controls	Power On/Off, Mode Setting, AF Level, Frequency Up/Down, Lock-on Mode
Spurious Emissions	<-50 dBC
Audio Frequency Response	50~16,000 Hz
Battery	UM3, AA 1.5V*2

Mh-960 (Option)

Frequency Preparation	PLL Synthesized Control
Carrier Frequency Range	502~960 MHz
RF Outputs	10mW
Stability	±10KHz
Frequency Deviation	±48KHz
LCD Display	Frequency, Battery Fuel Gauge, Sensitivity
Controls	Power On/Off, Mode Setting, AF Level, Frequency Up/Down, Lock-on Mode
Spurious Emissions	<-50 dBC
Audio Frequency Response	50~16,000 Hz
Battery	UM3, AA 1.5V*2

PT-950B/PT-950Bmi

Frequency Preparation	PLL Synthesized Control
Carrier Frequency Range	502~960 MHz
RF Outputs	10mW
Stability	±10KHz
Frequency Deviatio	±48KHz
LCD Display	Frequency, Battery Fuel Gauge
Controls	Power On/Off, AF Level, Frequency Up/Down, Lock-on Mode
Spurious Emissions	<-50 dBC
Audio Frequency Response	40~18,000 Hz
Battery	UM3, AA 1.5V*2

DOWNLOAD

USER GUIDES
US-901D System-06
