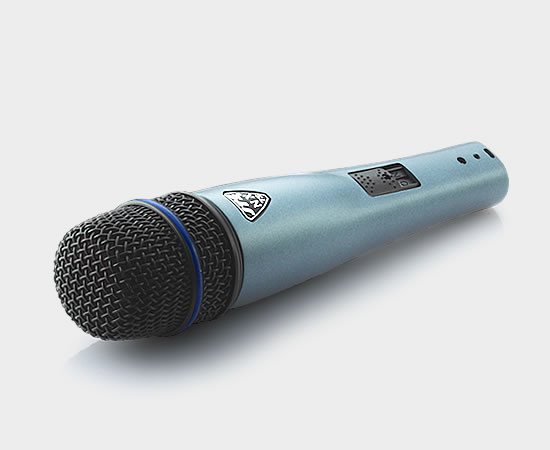

The NX-7/NX-7S are designed for optimal warmth and clarity. The outstanding pick-up pattern and sound quality make NX-7/NX-7S ideal for vocal,drums, guitar amplifiers and other instruments. The dynamic shock mount keeps noise to a remarkable low level. The top-flat grille allows mic. cartridge closer to a sound source to maximize low frequency proximity effect.
INSTRUMENT
| NX-7S | |
| Type | Moving Coil Dynamic |
| Frequency Response | 50~16,500 Hz |
| Polar Pattern | Cardioid,rotationally symmetrical about microphone axis, uniform with frequency |
| Sensitivity(at 1,000Hz) | -72dB*(0.25mV)*0dB=1V/μbar |
| Impedance | 600Ω |
| Phasing | Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3 |
| Connector | Three-pin professional audio connector (male XLR type) |
| Case | Metallic enamel-painted die cast metal body with hardened, matte-finished steel grille |
| Net Weight | 235 grams (8.3 oz) |
| NX-7S | Equipped with Magnetic Reed Switch |
| USER GUIDES | |
| NX-7S-02 | |
Wireless Instrument Microphone - Guitar / Winds Pack
The CX-505 is optimized for use with drums and percussion. The unique design and miniature profile avoids interference with drummers and percussionists.
The NX-7/NX-7S are designed for optimal warmth and clarity. Ideal for vocal, drums, guitar amplifiers and other instruments.
