CS-1DUF/CS-1CHF NEW

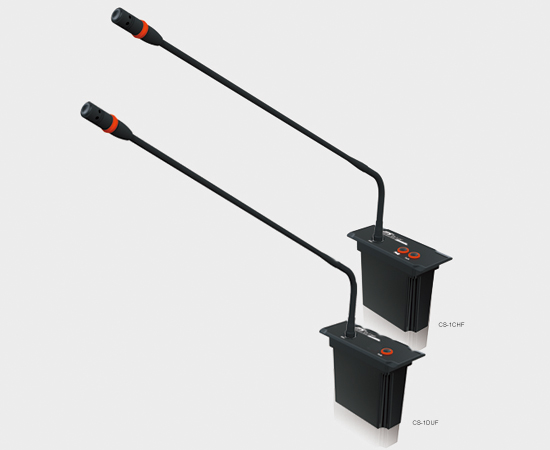

CS-1DUF is a flush mount version of CS-1DU
CS-1CHF is a flush mount version if CS-1CH

CS-1DUF CHF

WHAT YOU GETIS SUITABLE FOR

CONFERENCE

CONFERENCE

SPECIFICATIONS

Model : CS-1DUF/CS-1CHF
System limits Number of delegate / chairman units connected to one control unit
Maximum in total 50
Maximum per trunk output 25
Maximum trunk length using CS-1 standard cabling : 100M (Trunk1:50M+ Trunk2:50M)
Dimensions (HxWxD) with Mic 501mm*111.3 mm*45.3mm
Dimensions (HxWxD) without Mic  85.2mm*111.3mm*45.3 mm
Weight CS-1CHF: 343 g (with Mic)
CS-1DUF: 338 g (with Mic)
Gooseneck Microphone
Type Back Electret Condenser
Frequency Response 50 ~ 18,000 Hz
Polar Pattern Cardioid
Max. SPL for 1% THD 125dB
Length of Mic 422mm
Weight 84g

DOWNLOAD

USER GUIDES
CS-1DUF/CS-1CHF-09
