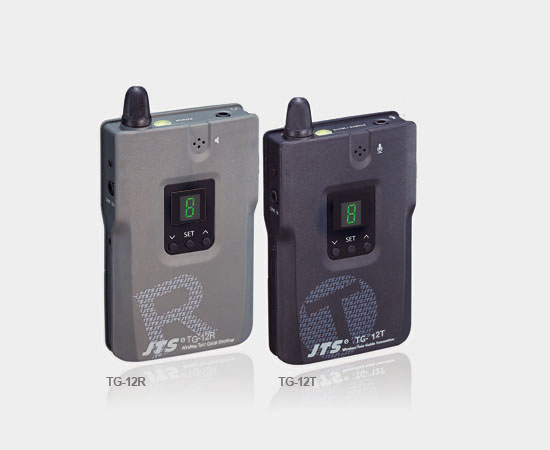

TG-12R/TG-12T NEW
The TG-12 is another series of tour guide system. Built with latest circuit design it is of very affordable price. Yet stable RF link, good audio quality and long battery life are still assured.
WHAT YOU GETIS SUITABLE FOR
TOUR GUIDE
SPECIFICATIONS
| TG-12R | |
| Model | TG-12R |
| Frequency Preparation | PLL Synthesized Control |
| Carrier Frequency Range | 502~960 MHz |
| Display Contents | Channel, Battery Status, Power On/Off, Mute |
| Controls | Power On/Off, Channel selection, Voiume, Mute |
| Squelch | Pilot Tone & Noise Mute |
| Output connector | 1/8" Dummy stereo Phone Jack |
| Battery | Rechargeable NIMH AA (1.2V, 2000mAh) |
| Dimension(mm) | 62mm(W)* 22mm(D)*112mm(H) |
| TG-12T | |
| Model | TG-12T |
| Frequency Preparation | PLL Synthesized Control |
| Carrier Frequency Range | 502~960 MHz |
| Stability Frequency | <±10KHz |
| Deviation | ±48KHz (Peak) |
| Display Contents | Channel, Battery Status, Power On/Off, Mute |
| Controls | Power On/Off, Channel Selecting, Volume, Mute |
| Spurious Emissions | < -50 dBC |
| Audio Frequency Response | 40~18,000 Hz |
| Battery | Rechargeable NIMH AA (1.2V, 2000mAh) |
| Input Connector | 1/8" Mono Phone Jack |
| Dimension(mm) | 62mm(W)* 22mm(D)* 112mm(H) |
DOWNLOAD
| USER GUIDES | |
| TG-12R/TG-12T-01 | |
