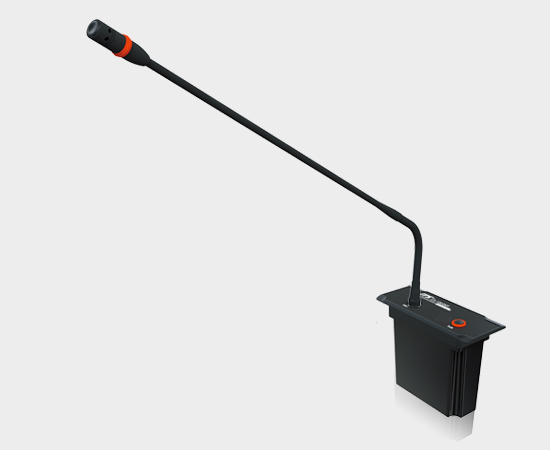

CS-120DUF

Both are flush mount design. All funcitons are the same as CS-120DUE and CS-120CHE but with
more competitive prices.

CS-120DUF

SPECIFICATIONS

CS-120DUF
Max. power consumption 0.7W (without 256x64 LCD)
Connection 7P-DIN dedicated cable with buckle
Microphone Type Uni-directional electret condenser microphone
Sensitivity -46 dBV/Pa
Frequency response 80-18000Hz
Input impedance 2kΩ
Directivity 0°/180° >20 dB(1kHz)
Equivalent noise 25 dBA (SPL)
Maximum sound pressure level 125 dB (THD<3%)
