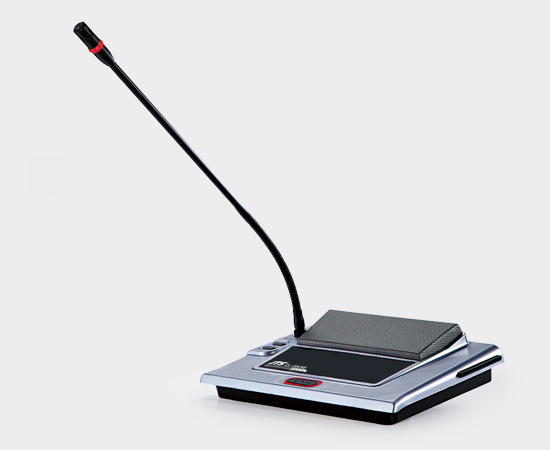

CS-120CHE

CS-120CHE is a simplified version of CS-120CH by removing voting function.

SPECIFICATIONS

CS-120CHE
Output frequency response	40-16000Hz
Earphone load	>16 Ω
Earphone volume	10 mV
Earphone output	φ 3.5mm stereo jack
Max. power consumption	1W (without 256x64 LCD)
Connection	7P-DIN dedicated cable with buckle
Microphone Type	Uni-directional electret condenser microphone
Sensitivity	-46 dBV/Pa
Frequency response	80-18000Hz
Input impedance	2kΩ
Directivity 0°/180°	>20 dB(1kHz)
Equivalent noise	25 dBA (SPL)
Maximum sound pressure level	125 dB (THD<3%)
