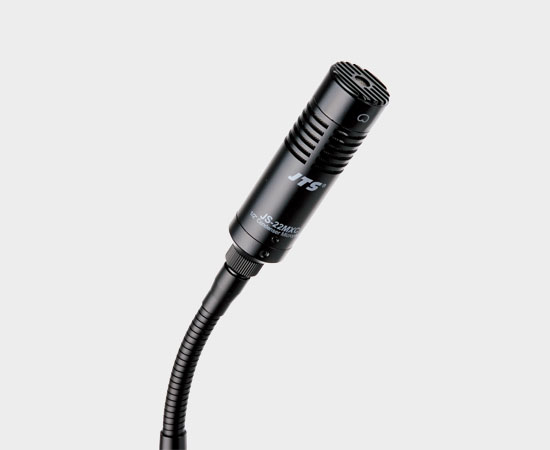

JS-22 MXC

Performance Microphone

SPECIFICATIONS

JS-22 MXC
Type	Condenser Mic
Frequency Response	20 ~ 20,000 Hz
Sensitivity	-36 ± 3 dB * (15.8mV)0dB = 1V / Pa, 1kHz
Directional Pattern	Cardioid
Attenuation Switch	-10dB
Low Frequency Roll-off	80Hz
Impedance	100Ω
Max. SPL For 1% T.H.D.	140 dB
Signal To Noise Ratio	78dB
Power Supply	36 ~ 52VDC phantom power
Current consumption	≤ 3mA
Output Connector	3P XLR-M type (power module)
Dimensions (mm)	Ø22.5mm (W) * 150.5mm (H)
