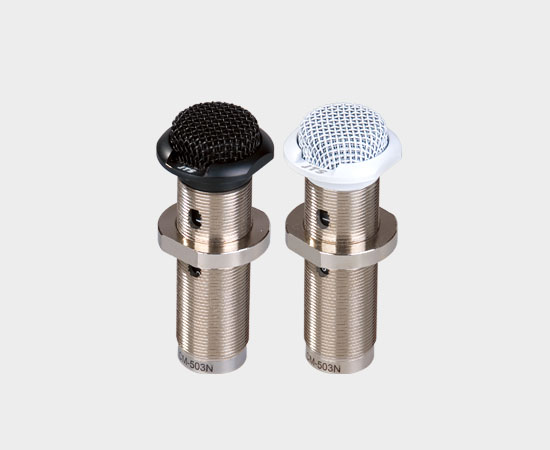

CM503N

Available in omnidirctional type . Designed for a wide range of applications, conferencing, installed sound, surveillance.

* Omnidirectional pickup pattern
* Extended frequency response
* Built in Low Cut and -10 dB Pad
* Option with Matt Black or Matt White
* Terminated with XLRM connecter

WHAT YOU GETIS SUITABLE FOR

CONFERENCE

SPECIFICATIONS

CM503N
Type	Electret Condenser
Frequency Response	40 to 17,000Hz
Polar Pattern	Omnidirectional
Sensitivity (at 1,000Hz)	-48±3dB* (3.98mV)* 0dB=1V/μbar
Attenuation Switch	-10dB
Low Frequency Roll-off	80Hz
Impedance	220Ω
Max. SPL For 1% T.H.D.	140 dB
Signal To Noise Ratio	68dB
Current Consumption	≤3mA
Power Supply	9-52 VDC phantom power
Output Connector	XLR-M type(power module)
