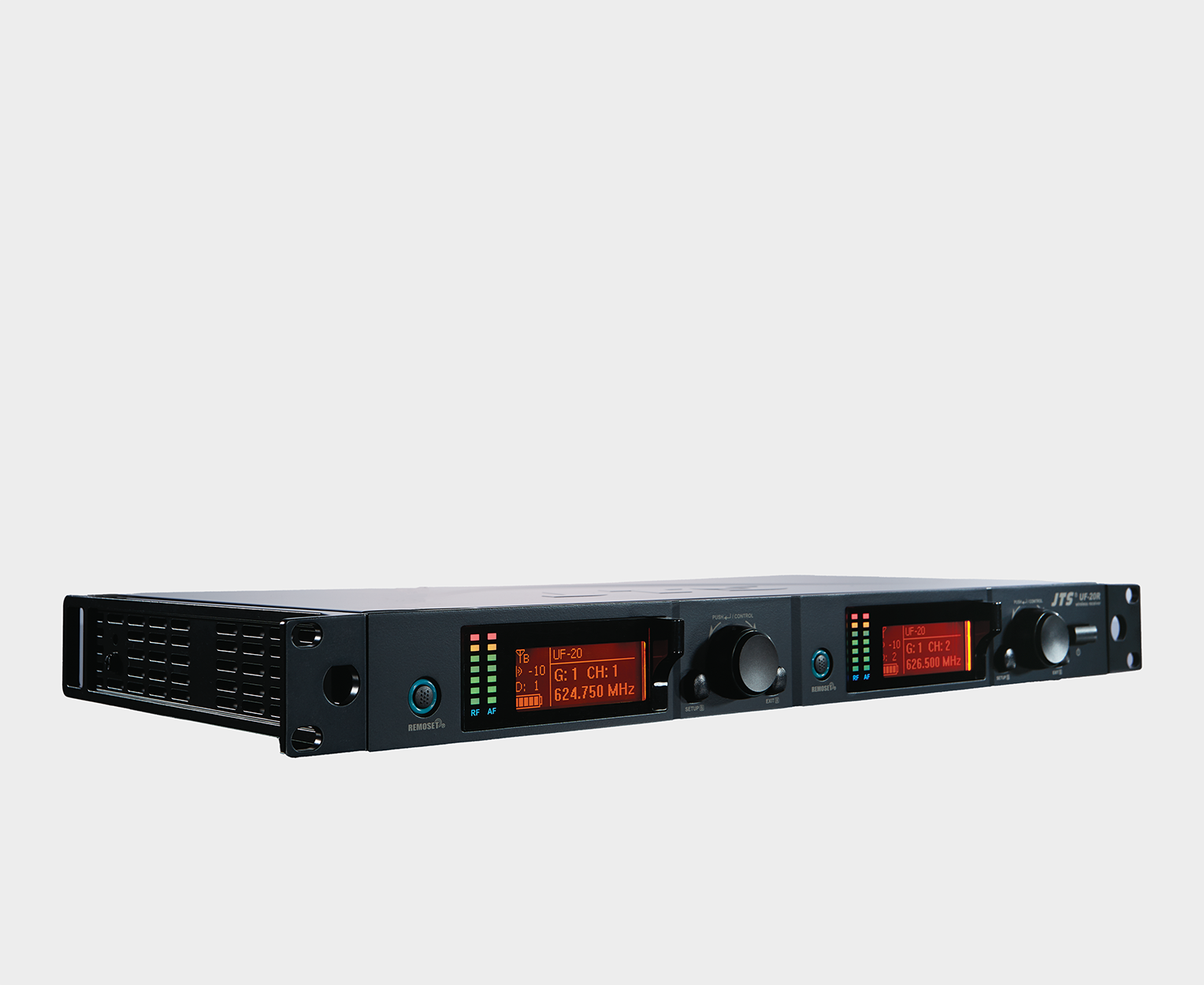

The JTS UF-20 series has been a trusted choice in installed and live production environments for many years. Now JTS raises the bar with the all-new UF-20DA wideband receiver, delivering everything users value in the UF-20R, enhanced with Dante integration for seamless networked audio and control.
LIVE PERFORMANCE
VOCAL
PRESENTATION
| UF-20DA |
|
Frequency Preparation |
PLL Synthesized Control |
| Frequency Setting | JTS patented obstacles-free RF REMOSET |
| Carrier Frequency Range | UHF 470~960 MHz |
| Channel | Dual |
| Bandwidth | 75MHz Wideband(MAX) |
| S / N Ratio | > 108dB (A) |
| T.H.D | <0.5% @ 1KHz |
| Chassis | 1U standard metal chassis |
| Preset Channels / Group |
* From group 1 ~ 15 up to 63 interference-free compatible channels. |
| Display | LCD |
| Display Contents | Group, Channel, Frequency, Antenna A/B ,RF/AF Level Meter, Mute Display, Transmitter Battery Status, REMOSET ID Number, User Name, Squelch |
| EQ | Low cut, Hi freq Boost |
| Sensitivity | 6dBμV, at S / N> 80dB |
| Receiving Mode | True diversity |
| Audio Output Level | Maximum 6dBu |
| XLR AF Output Impedance | 150/600Ω (mic/Line) |
| Frequency Response | 50Hz ~ 18kHz, with high-pass filter |
| Squelch | Pilot Tone & Noise Mute |
| Power Supply | 100 ~ 240V or 12V DC |

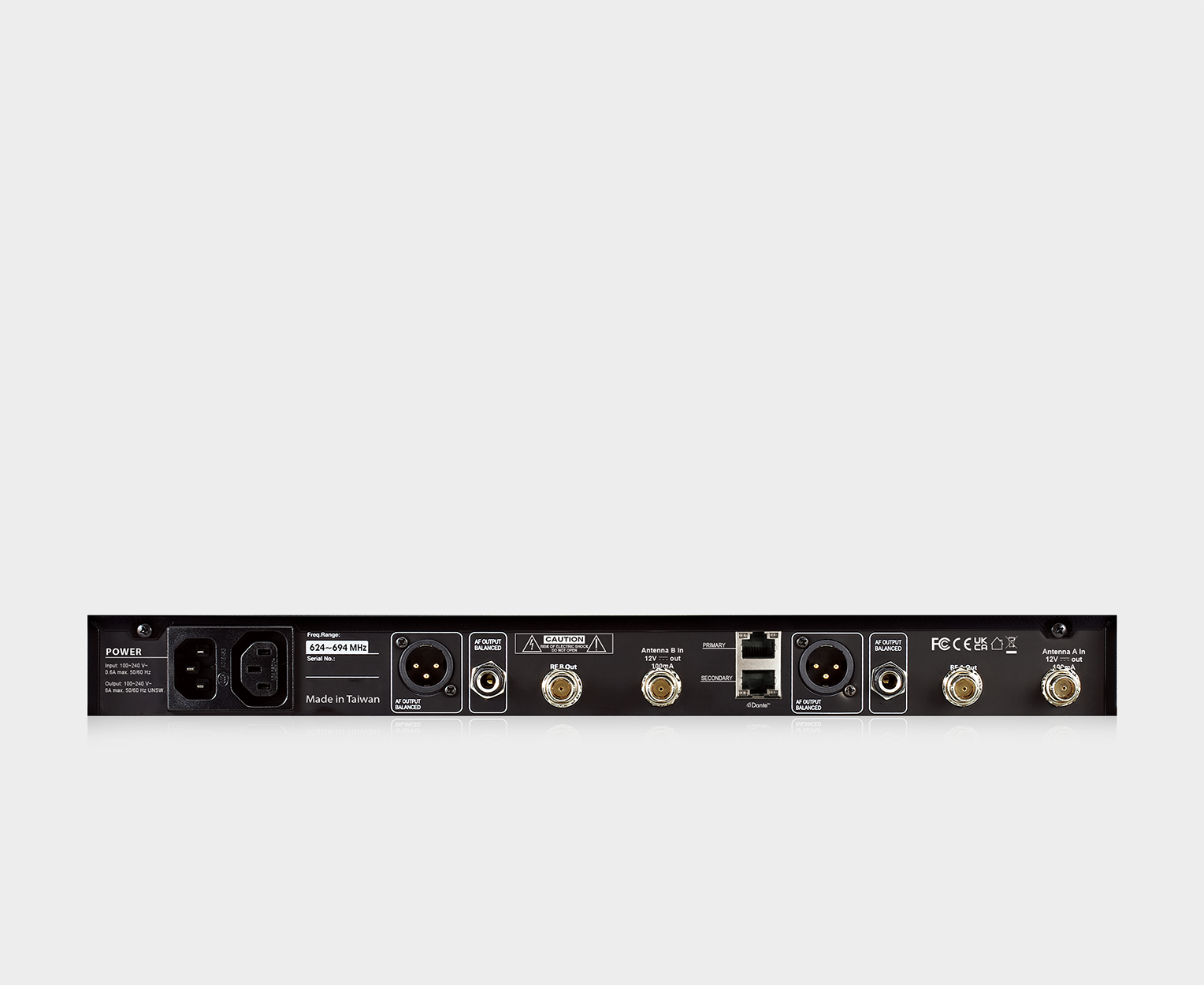

| Output Connector | 2 XLR Balanced Socket 2 Ø6.3mm Unbalanced phone jack |
| Network Interface | Dual Port Ethernet, Dante Digital Audio |
| Dimension (m / m) | 480mm (W) 45Mmm (H) 260mm (D) |
| Notes | Actual product specifications may vary depending on model and region. |
