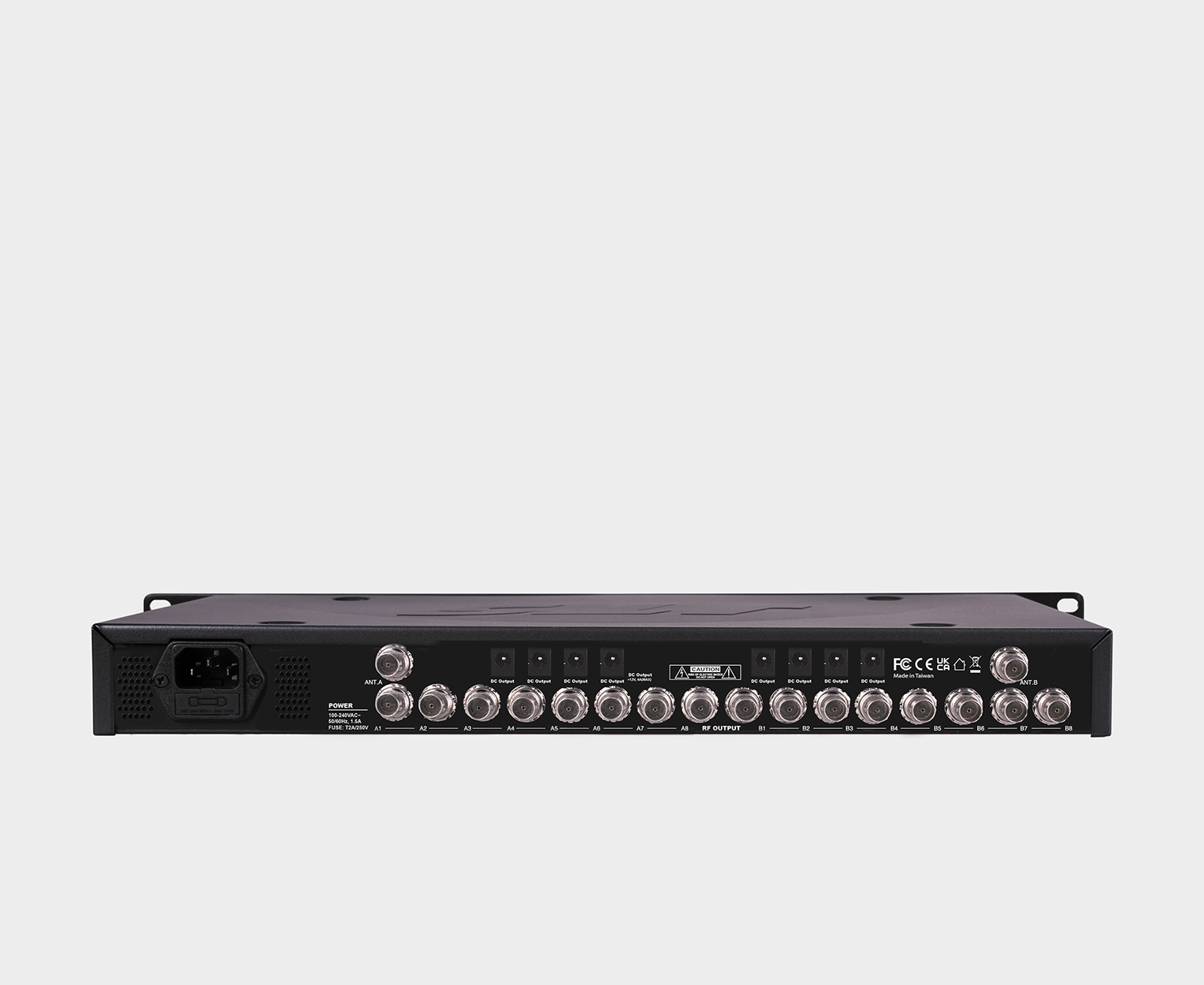

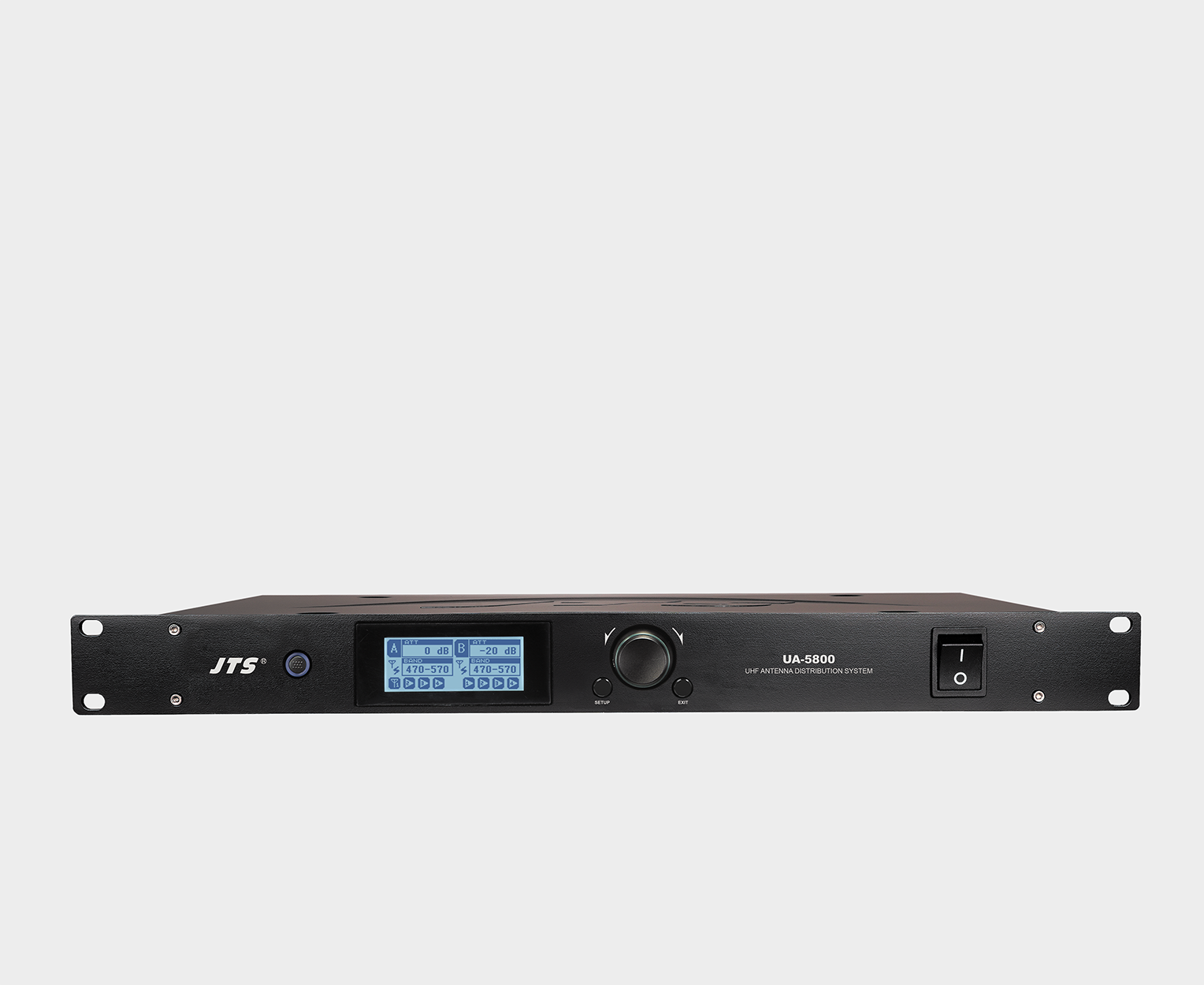

Designed for professional wireless setups, the JTS UA-5800 UHF antenna distributor delivers stable RF distribution from two antennas to multiple receivers. With built-in RF amplification and integrated DC power, it ensures optimized signal performance and a tidy, dependable rack installation.
LIVE PERFORMANCE
| UA-5800 |
| Frequency Range | UHF 470~960MHz |
| Attenuation | -31dB ~ 0dB |
| Band | Band Width :60MHz / Step: 10MHz Lo Band : 470-710MHz ; Hi Band : 720-960MHz (Filter Option) |
| Cascade output level | 0dB ~ +2dB |
| Output Connection Isolation | ≧25 dB |
| Third Order Intercept Point | 24 dBm |
| Impedance | 50 Ohm |
| Power Consumption | 74W |
| Input AC Voltage | 100~240 VAC; 50/60 Hz: 2A |
| Output DC Voltage | +12V/0.5A x 8 |
| Antenna Booster DC Voltage | 12V/400mA |
| USER GUIDES | |
| UDA-5800 / UB-5800 / UA-5800-01 | |
The UDA-49AP is a versatile active/passive UHF directional antenna designed to enhance signal reception while reducing interference from unwanted RF signals.
The JTS UB-5800 compensates for RF loss on long cable runs, offering precise gain control, clear LCD monitoring, and remote operation with power over coax when paired with the UA-5800 antenna distributor.
JTS UDA-5800 is a wideband UHF directional antenna designed for clean, focused RF reception. With approximately 7 dBi gain and a 120° beamwidth, it delivers stable performance in demanding wireless environments. A CNC-machined aluminum housing, multi-layer PCB, and front LCD display ensure reliability, EMI protection, and fast, intuitive setup.
