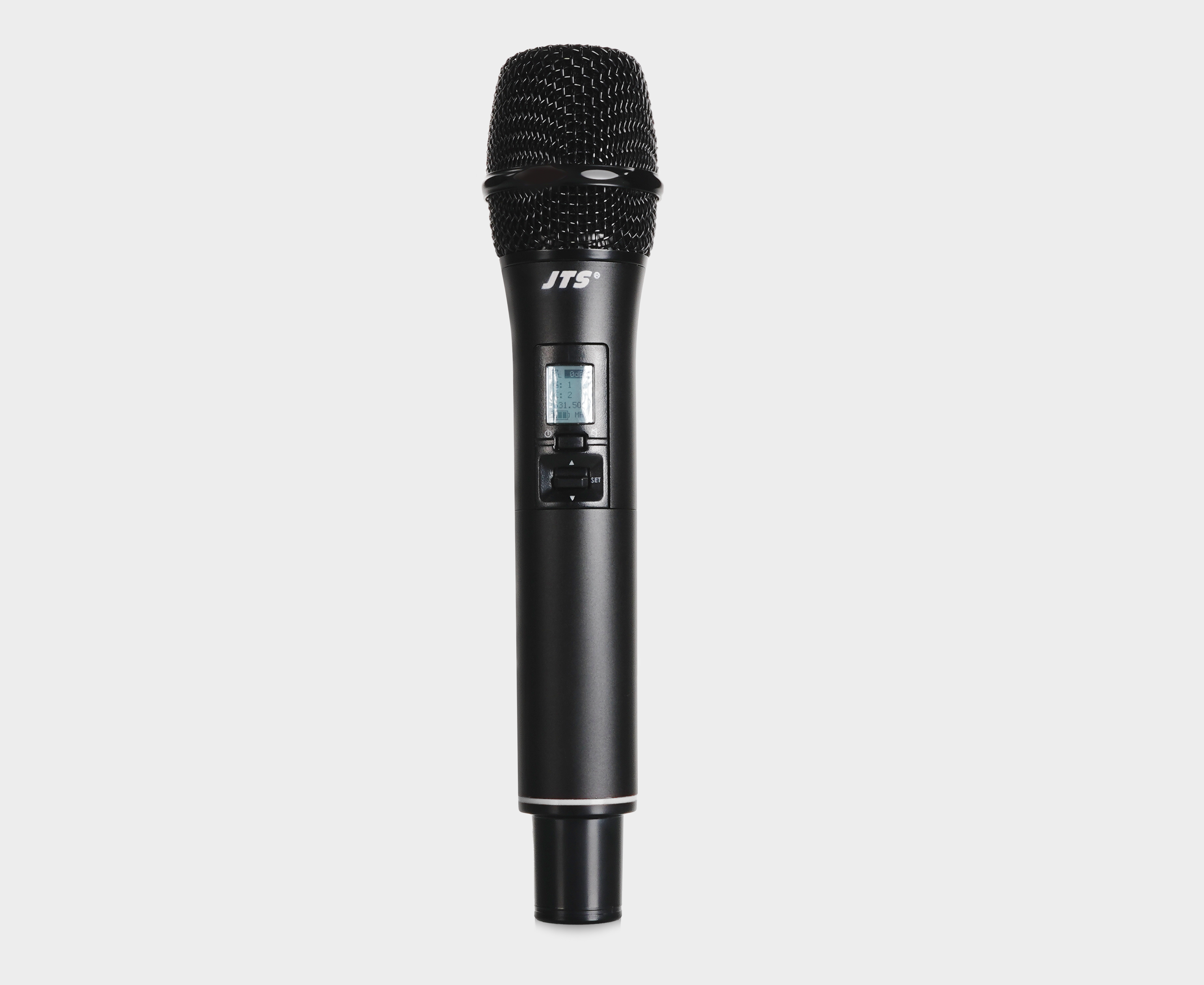

G-2TH NEW

The microphone is equipped with automatic power-off feature (which can be enabled/disabled in the setting). By enabling the feature, it will effectively minimize battery degradation and prolong battery life. Power off interval can be set to 1, 10, and 30 minutes. Toggle the Power button below the display enable/disable microphone mute when during use. This design allows quick access to mute, while still occupying a channel to prevent frequency interference.

▪ Full-metal case design.
▪ 36 MHz frequency range.
▪ Phase-locked Loop (PLL) synthesized tuner.
▪ Advanced circuit ensures stable signal transmission.
▪ Stable and wide frequency response curve from the signal.
▪ Noise mute and tone-key squelch.
▪ Built-in antenna.
▪ The transmitter is equipped with automatic power-off feature.

G-2TH

WHAT YOU GETIS SUITABLE FOR

LIVE PERFORMANCE

LIVE PERFORMANCE

VOCAL

VOCAL

PRESENTATION

PRESENTATION

SPECIFICATIONS

G-2TH
Frequency Preparation Phase-locked loop, PLL
Carrier Frequency 470~960MHz(as per local regulations)
RF Power Output 3mW/10mW(as per local regulations)
RF Stability <±10KHz Fc
Modulation Frequency Shift ±48KHz
Harmonic Radiation <-50dBc
Functions Mute, auto off, sensitivity adjustment, low power indication, channel
Display LCD+LED
Controls Power, mute, group, channel, frequency, sensitivity adjustment, auto off, key lock
Battery AA alkali battery or MiNH rechargeable battery x 2
Dimensions(mm): 51mm (W)x 269mm (H)


DOWNLOAD

USER GUIDES
G-2TH-03
