* Up tp 81 preset selectable channels.
* Phase-locked Loop (PLL) synthesized tuner.
* Advanced circuitry ensures stable signal transmission.
* Extended dynamic range and smooth frequency response.
* Noise mute and tone-key squelch.
* Internal antenna design.
* Compatible with R-2 miniature wireless receiver.

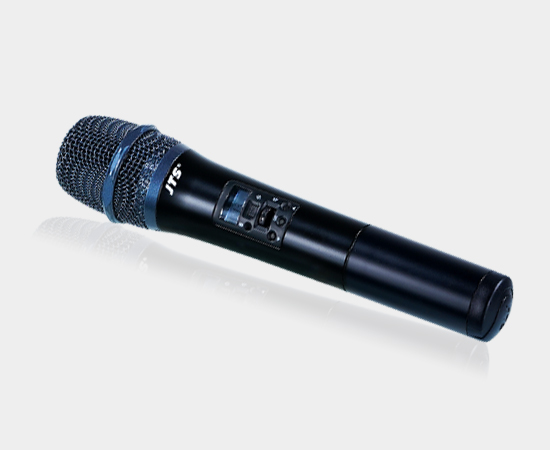

| TH-1D |
| Frequency Preparation | PLL Synthesized Control |
| Carrier Frequency Range | UHF 470~960 MHz |
| RF Outputs | 3mW/10mW |
| Stability Frequency | < ±10KHz@Fc |
| Deviation | ±48KHz (Peak) |
| Spurious Emissions | <-50 dBC |
| Display Contents | Channel, Battery Status, Power On/Off, Mute |
| Display | LCD+LED |
| Controls | Power ON/OFF, Mute, Group, Channel, Frequency, Squelch, Auto Off, Key Lock |
| Battery | UM3, AA x2 |
| Dimensions | 26mm(W)x269mm(H)x51(D) |
| Notes | Actual product specifications may vary depending on model and region. |
| USER GUIDES | |
| TH-1D | |
