AT-780/880/980/990

The AT series is based on successful experience of TK series. Three models are designed with three different capsules to meet detailed acoustic demand. Magnetic switch minimizes switch noise. Optimized metal body isolates handling noise effective.

FCC CE
AT-780

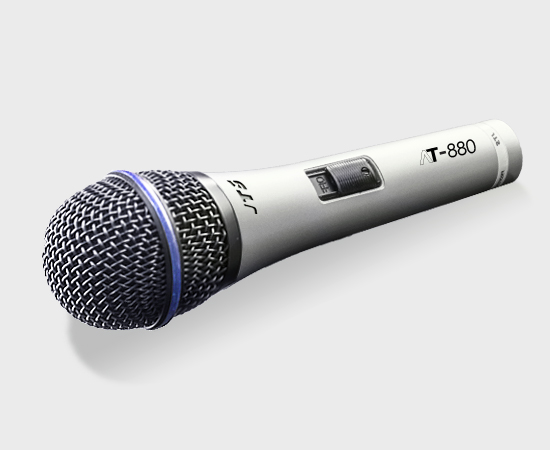

AT-880
AT-980

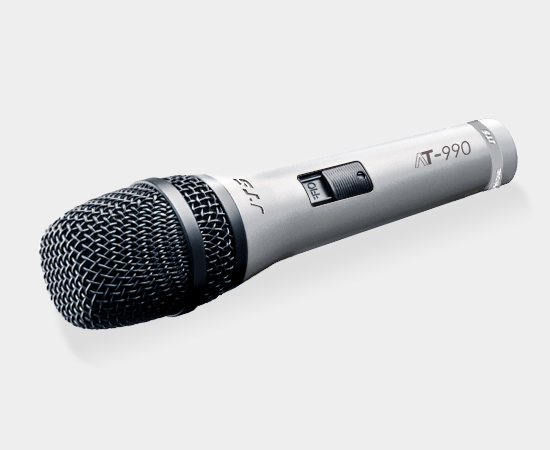

AT-990

SPECIFICATIONS

AT-780

Type D-27i Moving Coil Dynamic
Polar pattern Cardioid, rotationally symmetrical about microphone axis, uniform with frequency
Frequency Response

50 ~ 15,000 Hz

Sensitivity (at 1,000Hz) 75dB * (0.18mV) * 0dB = 1V/μbar
Impedance

Rated impedance 600Ω for connection to microphone inputs rated low Z.

AT-880
Type D-36K Moving Coil Dynamic
Polar pattern Cardioid, rotationally symmetrical about microphone axis, uniform with frequency
Frequency Response

40 ~ 16,500 Hz

Sensitivity (at 1,000Hz) -75dB * 0dB = 1V/μbar
Impedance

Rated impedance 600Ω for connection to microphone inputs rated low Z.

AT-980
Type

D-36Ai Moving Coil Dynamic

Polar pattern Cardioid, rotationally symmetrical about microphone axis, uniform with frequency
Frequency Response

80 ~ 12,000 Hz

Sensitivity (at 1,000Hz) -75dB * 0dB = 1V/μbar
Impedance

Rated impedance 600Ω for connection to microphone inputs rated low Z.

AT-990
Type

D-27i Moving Coil Dynamic

Polar pattern Cardioid, rotationally symmetrical about microphone axis, uniform with frequency
Frequency Response

50 ~ 15,000 Hz

Sensitivity (at 1,000Hz) -75dB * (0.18mV) * 0dB = 1V/μbar
Impedance

Rated impedance 600Ω for connection to microphone inputs rated low Z.
