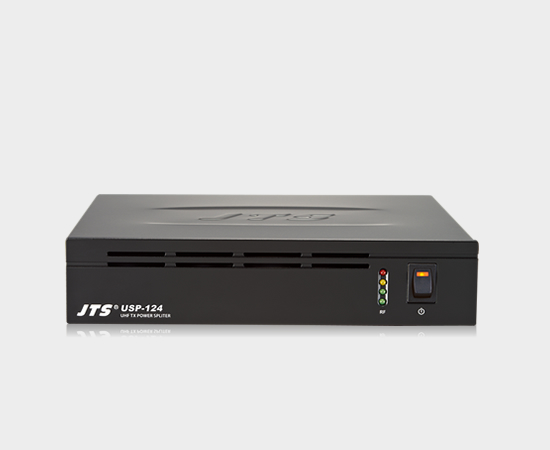

USP-124

The USP-124 is a UHF 4 channel transmission signal splitter. It provides maximum output level of 26 dBm at each output port. The main application of the product is to provide larger coverage of transmission signal, for example, different floors in a building.
The product is good not only with JTS stationary transmitters but also transmitters from other brands.

SPECIFICATIONS

USP-124
Carrier Frequency Range	UHF 470~970MHz
Amplifier Gain	0~+2dB
Input/Output VSWR	≦1.5:1
Input Power Indicator	+3dBm, +7dBm, +15dBm, +20dBm
Maximum Input Power	+26dBm (Under +24dBm is Recommended)
Power Supply	DC 12~15V/1A
Connectors	BNC Socket(1 Input, 4 Outputs)
Dimensions(mm)	212 (W) × 44 (H)× 203 (D)
Weight	350g
