CX-516

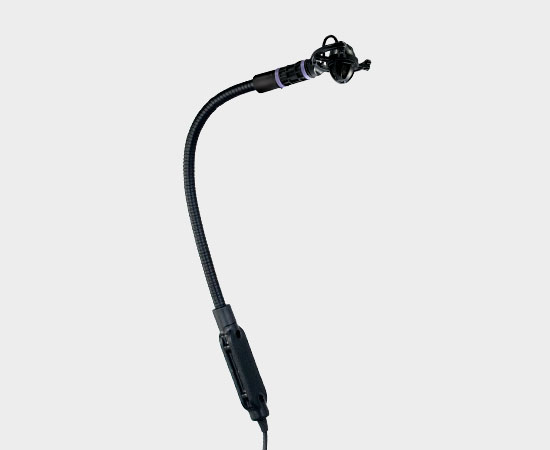

The CX-516 is a high-quality, miniature unidirectional condenser microphone designed for studio recording, broadcasting, and sound reinforcement. Its wide frequency response and low noise characteristics have made it a standard for use with acoustic string instruments: violins, cellos, as well as woodwind instruments, accordion, and organ (Leslie) cabinets. The tailored sound characteristics, superb transient response allows detailed transparent reproduction of the sound source. The mini flexible gooseneck design provides quick pinpoint miking via the built in mounting clip. Newly added spider suspension isolates unwanted mechanical vibration effectively.

CX-516

WHAT YOU GETIS SUITABLE FOR

INSTRUMENT

INSTRUMENT

SPECIFICATIONS

CX-516
Type Uni-directional Condenser
Frequency Response 30~18,000 Hz
Sensitivity (at 1,000Hz) -65dB*(0.56mV)*0dB=1V/μbar
Impedance 220Ω
Max. SPL for 1% T.H.D. 130 dB
Signal-To-Noise Ratio 70 dB
Output Connector XLR-(M) type (power module)
Phantom Power Requirements 9-52 VDC
Current Consumption ≤ 3mA
Weight 150 grams (5.29oz)
Dimensions 245mm ×30mm

DOWNLOAD

USER GUIDES
