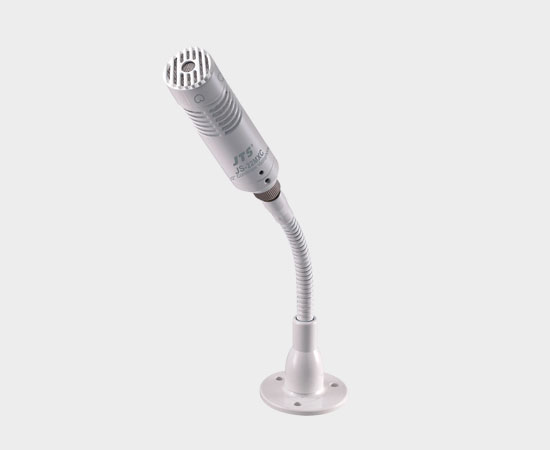

* Uses JS-22MXC capsule module which brings studio quality sound to installation microphone.
* Detachable capsule design renders easy change of capsule and service.
* High quality gooseneck assures accurate miking.
* Self-contained electronics eliminates the need of external power module.
* Durable materials allow fixed installation.
* CM-22G offers two different lengths, 6 and 12 inches.
* Black and white color available
CHOIR
| CM-22G6 | |
| Type | Condenser Mic |
| Frequency Response | 20 ~ 20,000 Hz |
| Polar Pattern | Cardioid |
| Attenuation Switch | -10dB |
| Low Frequency Roll-off | 80Hz |
| Impedance | 100Ω |
| Max. SPL For 1% T.H.D. | 140 dB |
| Signal To Noise Ratio | 78dB |
| Power Supply | 36 ~ 52VDC phantom power |
| Current consumption | ≤ 3mA |
| Output Connector | 3P XLR-M type (power module) |
| Length | 201.5mm |
| USER GUIDES | |
| CM-22G6-03 | |
