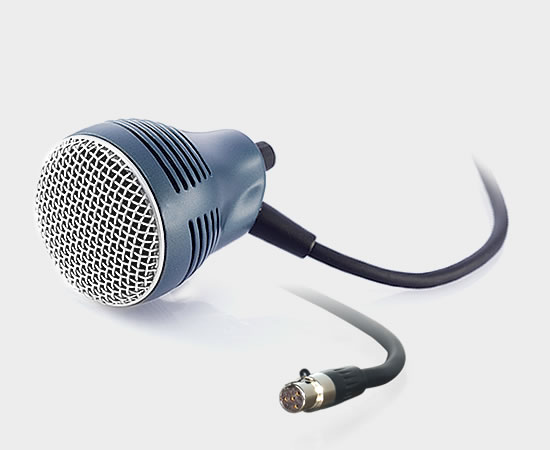

CX-520

Equipped with capsule from JTS legendary D-25 family the CX-520 is a professional harmonica microphone. The smooth frequency response and wide dynamic range assures CX-520 ideal for both diatonic and chromatic harmonica. The contoured mic body renders a player finding an ideal resonant cavity easily for her or him self.

* Supercardioid pick up pattern
* Low noise metal body
* Steel mesh with designed windscreen efficiently handles breath blasts.
* On/Off and volume switch

Good for:
* Harmonica and also
* Vocal
* Flute
* Percussion

WHAT YOU GETIS SUITABLE FOR

INSTRUMENT

SPECIFICATIONS

CX-520
Type	Moving Coil Dynamic
Frequency Response	50~16,500 Hz
Polar Pattern	Supercardioid, rotationally Symmetrical about microphone axis,uniform with frequency
Sensitivity(at 1,000Hz)	-78±3dB(0.125mV)0dB=1V /μbar
Impedance	600Ω
Connector	4P Mini XLR
Cable Length	1.5m
Net Weight	263 grams(excluding cable)
Standard Accessory	MA-500
