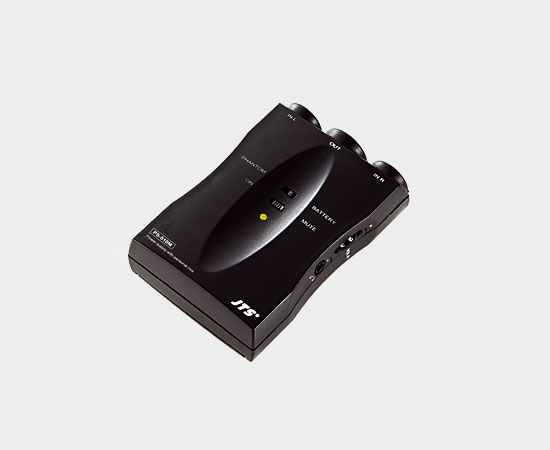

PS-510M

The PS-510M is developed based on PS-500. The PS-510M provide both 9V battery power and
phantom power. It is built with earphone output for musician to monitor a preferred mix of two
microphone signals before goes to PA.

SPECIFICATIONS

PS-510M
Frequency Response	20~20,000 Hz
Power Supply	Batt. Power 9V / 12~48V Phanton Power
Current Consumption	Phantom: max. 20 mA Battery: max. 80mA with Headphone(16Ω/32Ω)
Input Impedance	5 k Ω
Output Impedance	470 Ω balanced
Input	4P Mini XLR(M) (2 channels)
Output Connector	3P XLR(M)
Headphone Jack	3.5mm
Dimension (m / m)	92mm(W)* 23mm(H)* 65mm(D)
