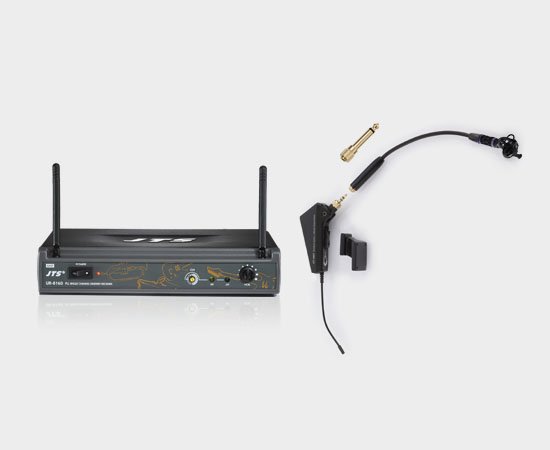

UR-816D + UT-16GT (Guitar / Accordion Pack)
WHAT YOU GETIS SUITABLE FOR
INSTRUMENT
SPECIFICATIONS
| UR-816D | |
| Frequency Preparation | PLL Synthesized Control |
| Carrier Frequency Range | 502~960 MHz |
| 3x Frequency Range | 856.100 - 864.900 MHz (F band) 606.500 - 629.900 MHz (U band) 721.500 - 748.375 MHz (G band) 658.125 - 678.500 MHz (D band) 487.125 - 506.500 HHz (I band) 502.000 - 694.000 MHz (T band) |
| S/N ratio | > 105dB |
| T.H.D. | <0.6%@1KHz |
| Display | LED |
| Display Contents | Antenna A/B, RF/AF Status |
| Controls | Power On/Off, Channel Selecting, Audio Level |
| Audio Output Level | -12dB |
| AF Output Impedance | 600Ω |
| Squelch | Pilot Tone, Noise and Mute |
| Operation Voltage | 12-18 VDC, 200mA |
| Output Connector | 1 Balanced XLR socket 1 Unbalanced Ø6.3mm phone jack |
| Dimension(m/m | 210mm (W)* 40mm (H)* 171mm (D) |
| UT-16GT | |
| Frequency Preparation | PLL Synthesized Control |
| Carrier Frequency Range | 502~960 MHz |
| 3x Frequency Range | 856.100 - 864.900 MHz (F band) 606.500 - 629.900 MHz (U band) 721.500 - 748.375 MHz (G band) 658.125 - 678.500 MHz (D band) 487.125 - 506.500 HHz (I band) 502.000 - 694.000 MHz (T band) |
| RF Outputs | Maximum 10mW |
| Stability | ±10KHz |
| Frequency Deviation. | ±48KHz |
| LED Display | Power On/Off, Low battery |
| Controls | Power On/Off, AF Level, Channel Selecting, Mute |
| Spurious Emissions | <-50 dBC |
| Audio Frequency Response | 40~18,000 Hz |
| Battery | LR03, AAA 1.5V |
DOWNLOAD
| USER GUIDES | |
| UR-816D + UT-16GT (Guitar / Accordion Pack)-04 | |
