* Output power: 120 Watt.
* Advanced circuit design ensures outstanding S / N ratio and low distortion.
* Maximum 3 UHF diversity receivers can be used.
* Each receiver provides with 16 selectable channels.
* Digital echo.
* Voice priority function.
* Built-in CD player. (Cassette player is optional)
* Built-in rechargeable battery.
* Built-in removable battery

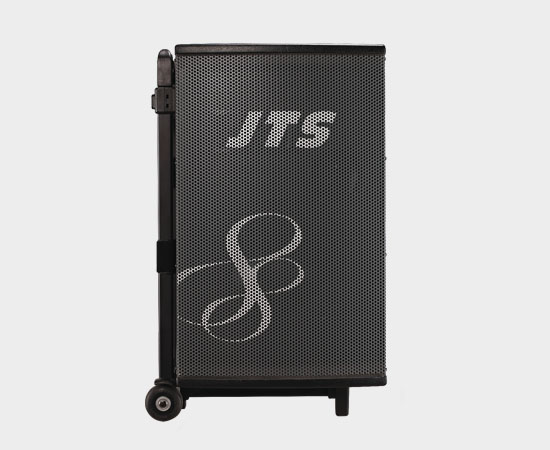

| WA-88 | |
| AC Power | 115V or 230V |
| DC power | 24V~30V |
| Lead-acid Battery | 12V/5AH*2 |
| Woofer | 8” 8Ω/100W |
| Tweeter | piezoelectric |
| Echo Time (ms) | 49.2/98.3/147.5/196.6 |
| Sensitivity of MIC1/MIC2 | -47dB/600Ω |
| Sensitivity of AUX IN/GUITAR | -11dB/10K |
| AUX Output | -3dB/600Ω |
| Treble Control | ±10dB at 10KHz |
| Bass Control | ±10dB at 100Hz |
| Power Output | 120W |
| Power Consumption | 180VA |
| T.H.D. | <0.5% at 1 Watt output |
| S/N ratio | >60dB at 50W output |
| Build-in Audio. | CD module |
| Control Switcher | ECHO, Priority, Power |
| Rotary switch | MIC1, MIC2,AUX,TIME, DEPTH, ECHO Vol, TREBLE, BASS, MASTER |
| Dimension | 310mm(W)*515mm(H)*380mm(D) |
| Weight | 24.6Kg |
