TG-16R/TG-16T

* Maximum operational distance (in line of sight) 100 meters for TG-16 and 200 meters for TG-16A.
* Preset 16 selectable channels.
* Use NiMH rechargeable AA battery
* Transmitter bundled with tie clip microphone W-68T.
* Receiver bundled with single earphone WM-10TG.
* Built in microphone at TG-16T and TG-16TA.
* Space available for built in speaker at TG-16R and TG-16RA.
* Compatible with stationary transmitter TG-10STX and receiver.
* Designed for cost cautious projects

FCC CE

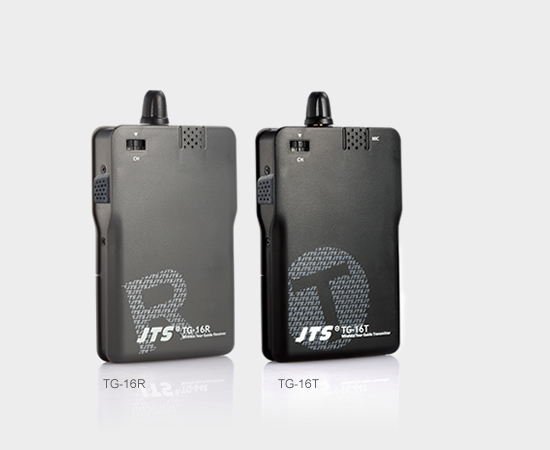

TG-16R TG-16T

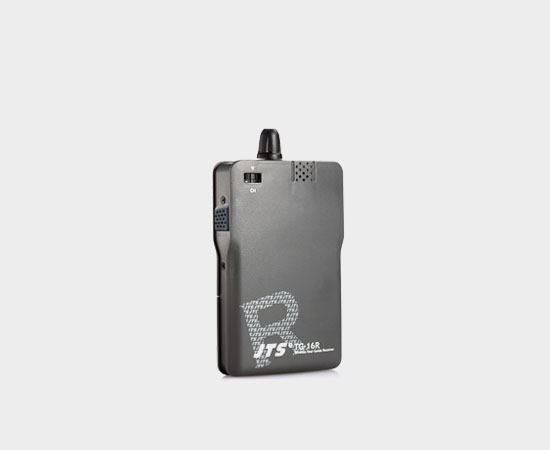

TG-16R
TG-16T

WHAT YOU GETIS SUITABLE FOR

TOUR GUIDE

TOUR GUIDE

SPECIFICATIONS

TG-16R/TG-16T
Frequency Preparation PLL Synthesized Control
Carrier Frequency Range 502~960 MHz
Controls

Channel Power On/Off, Channel selection
Voiume control

Audio Frequency Response 40~18,000 Hz
Output connector 1/8” Dummy stereo Phone Jack
Battery life 10 hours typical
Battery Rechargeable NIMH AA (1.2V, 2000mAh)
Dimension(mm) 62mm(W)* 20mm(D)* 97mm(H)
