CM602

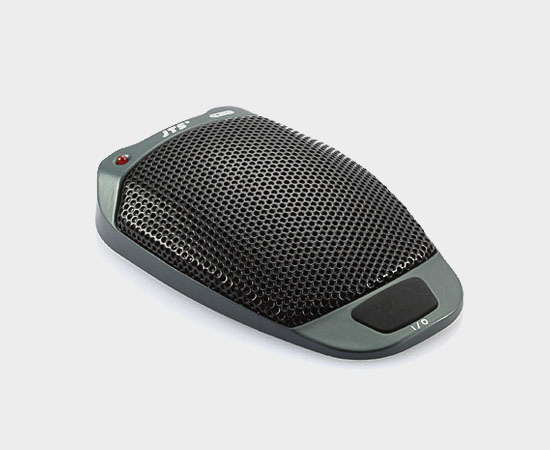

The CM-602 is a simplified version of CM-601 with ON/OFF switch only.
* The CM-601 is designed for conference, house of worship, and theater applications.
* The CM-601 features red LED indicator, 3 step Low-Cut switch and back electric cardioid condenser capsule.
* The membrane ON/OFF switch can be programmed to PUSH ON/PUSH OFF,PUSH TO TALK and PUSH TO MUTE three modes.
* The precisely calculated circuit plus tailored capsule response ensure transparent sound quality.
* Internal shock mount minimizes mechanical noise.
* The CM-602 is a simplified version of CM-601 with ON/OFF switch only.

CM602

WHAT YOU GETIS SUITABLE FOR

CONFERENCE

CONFERENCE

SPECIFICATIONS

CM602
Type Electret Condenser
Frequency Response 30~12,000 Hz
Sensitivity (at 1,000Hz) -53±3 dB* (2.23mV)  0dB=1V /μbar
Directional Pattern Half-Cardioid
Impedance 100Ω
Max. SPL for 1% THD 125 dB
Signal-To-Noise Ratio 67dB
Power Supply 12-52 VDC phantom power
Current Consumption ≤6mA
Output Connector 3P Mini XLR-M type(power module)
Net Weight 88 grams
CM-601 Only 0
Low Frequency Roll-off 80Hz , 120Hz
Switches Push control: on/off
Function selection:push on/off, momentaryon/off
Low cut : low frequency roll-off

DOWNLOAD

USER GUIDES
CM-602-04
