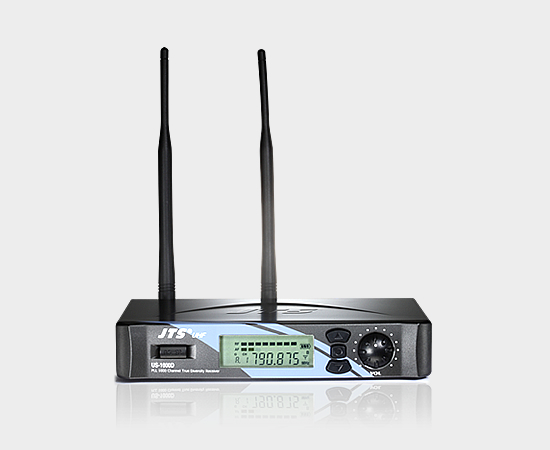

US-1000D

* Single Transmitter operation.
* PLL synthesized technology with 961 selectable UHF channels.
* Preset 4 groups each of 16 UHF channels.
* True diversity technology prevents RF dropouts.
* Equipped with S.A.W. filter for interference free operation.
* Built-in ,noise mute and tone-key squelch.
* “Lock-on” mode avoids accidental changes of frequency, sensitivity and power-off.
* Equipped with both XLR balanced and Ø6.3mm unbalanced outputs.
* Tuned antennas for the most stable RF reception.
* Compact half rack space design with metal receiver housing.

FCC CE
US-1000D

SPECIFICATIONS

US-1000D
Frequency Preparation PLL Synthesized Control
Carrier Frequency Range 502~960 MHz
S/N Ratio > 105dB
T.H.D <0.6%@1KHz
Display LCD
Display Contents Frequency, Antenna A/B, Mute Display, RF/AF Level Meter, Battery Fuel Gauge
Controls Power On/Off, Frequency Up/Down, Frequency
Scan, Audio Level, Lock-on
Audio Output Level -12dB
AF Output Impedance 600Ω
Squelch Pilot Tone, Noise and Mute
Operation Voltage 12-18 VDC, 250mA
Output Connector 1 XLR Balanced Socket
1 Ø6.3mm Unbalanced phone jack
Dimension(m/m) 212mm (W)* 40mm (H)* 137mm (D)
