JTS PROFESSIONAL

Wired & Wireless Microphone
- Wired Microphones
  A wide range of wired microphones fit for any style or application there is in music or performance that can handle all your recording and sound-reinforcement needs.
- Wireless Microphones
  With advanced wireless technology, JTS wireless microphone systems outperform many other wireless systems in and above their price range. PLL technology provides great freedom from RF interference, and outstanding signal reliability allows a maximized numbers of systems working simultaneously.
- In-ear Monitoring System
  Based on JTS advanced wireless technology the SIEM series monitor royally deliver consistent personal monitor mixes to musician and band. As always affordable model and very professional system can be found here.
- Accessories
  Find necessary accessories to complete your systems here.
Headphone & Earphone
- Headphone
- High Definition Earphone
- Earphone
  JTS sophisticated transducer technology assures excellent sound quality and delivers clear defined music and vocals. Together with ergonomic design both the headphones and earphones grant long time fatigue free wearing for professional monitoring and personal entertainment.
- Accessories
Installation
- Installed Microphone
  Installed microphones are required for a full range of applications that demand sound to be captured at a greater distance than what is expected of a stage vocal microphone. JTS installed microphones consistently provide superior fidelity, durability, versatility, and value; with ease of installation.
- Conference System
- Automatic Microphone Mixer
- Interpretation System
  The JTS IT-12 Interpretation System is designed to provide an open platform for any kinds of conference systems or devices demanding interpretation. Maximum 12 languages can be handled.
- Tour Guide System
  The TG-series Tour Guide System provides listening assistance to not only tourists but also to all people who needs to choose a source or a language from the many.
- Wireless Camera System
- Portable Sound System
  The AWA series provides all in one design. Up to four wireless receivers, CD player, built in digital echo, rechargeable battery and 8 inch woofer with piezoelectric tweeter are just a few to mention. Solid and defined sound renders the AWAs good for professional and entertainment.
- Accessories
Instrument Microphone
- Live Band
  Here JTS provides traditional beltpack and sub-miniature clip on transmitters with 16 to 3000 selectable channels. Various instrument microphones for string instruments, winds and reed instruments can be used with the wireless systems.
- Classical Music
  Here JTS provides traditional beltpack and sub-miniature clip on transmitters with 16 to 3000 selectable channels. Various instrument microphones for string instruments, winds and reed instruments can be used with the wireless systems.
- Oriental Instruments
  The JTS innovative new oriental instrument CX-500HQ, CX-512GZ and CX-513YQ series are perfectly designed to pick up Chinese instrument Hu-Qin, Zither and Dulcimer. Be the first to experience !
Technology

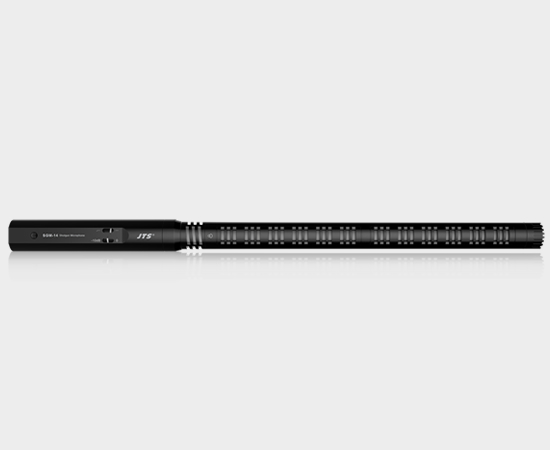

SGM-14

This 14” shotgun microphone is designed for ENG, outdoor recording and other specialized uses. It provides narrow acceptance angle and is desirable for long distance sound pick up. Low cut and pad are available for best miking effect.

SPECIFICATIONS

SGM-14
Type	Electret Condenser
Frequency Response	20~20,000 Hz
Sensitivity	-52±3dB(2.5mV)0dB=1V/μbar
Polar Pattern	Hypercardioid
Attenuation Switch	-10 dB
Low Frequency Roll-off	80 Hz
Impedance	Rated impedance is 200Ω
Max. SPL for 1% THD	125dB (135dB with -10 dB Attenuation)
Signal To Noise Ratio	78dB
Power Supply	9~48VDC phantom power
Output Connector	3P XLR (M)
Length	355.7mm
