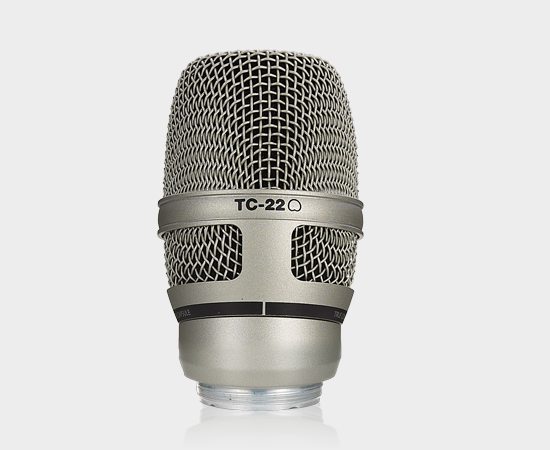

TC-22

The TC-22 is designed for wireless transmitter. It brings studio performance onto the stage. It
specially fit JTS JSS-20, JSS-4 and Shure* wireless transmitters. It is a reasonably priced product for top musicians.
Note: Shure is a brand owned by Shure Incorporated.

TC-22

SPECIFICATIONS

TC-22
Type Condenser
Polar Pattern Cardioid
Frequency Response 50~18,000 Hz
Sensitivity (1,000 Hz) -68±3 dB* (0.4mV) *0dB=1V /μbar
Impedance Rated impedance is 2kΩ
Max. SPL for 1﹪THD 150dB
Power Supply 4~6VDC
Current consumption ≦1mA
Connector Interface Gold-plated PC board contact
Net Weight 143grams
