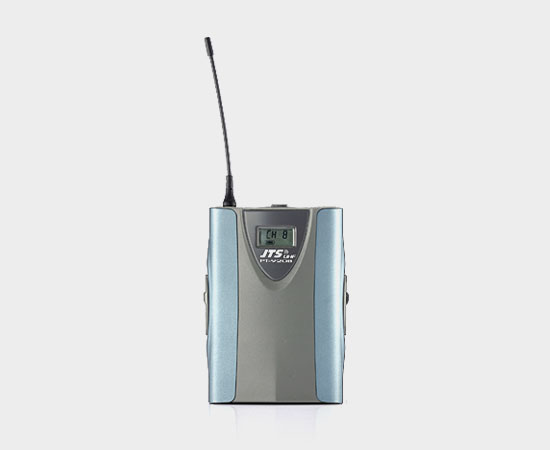

PT-920BGmi

* PT-920BGmi offers a wireless solution for most musical instruments.
* 64 Selectable channels
* Phase-locked Loop (PLL) synthesized tuner.
* Advanced circuitry ensures stable transmission.
* Powered by 2 AA batteries.
* Equipped with 4P Mini XLR connector.
* LCD display.
* Compact, heavy duty plastic housing.
* The “lock-on” function mode prevents tampering and RF interruption.

FCC CE
PT-920BGmi

PRODUCT SERIES

903DC Pro System

UHF PLL Dual Channel Diversity Receiver / Transmitter

SPECIFICATIONS

PT-920BGmi
Frequency Preparation PLL Synthesized Control
Carrier Frequency Range 502~960 MHz
RF Outputs 10mW
Stability ±10KHz
Frequency Deviatio ±48KHz
LCD Display Channel, Battery Fuel Gauge, Sensitivity
Controls Power On/Off, AF Level,
Channel Up/Down, Lock-on Mode.
Spurious Emissions <-50 dBC
Audio Frequency Response 40~18,000 Hz
Battery UM3, AA 1.5V*2

DOWNLOAD

USER GUIDES
PT-920BGmi-11
