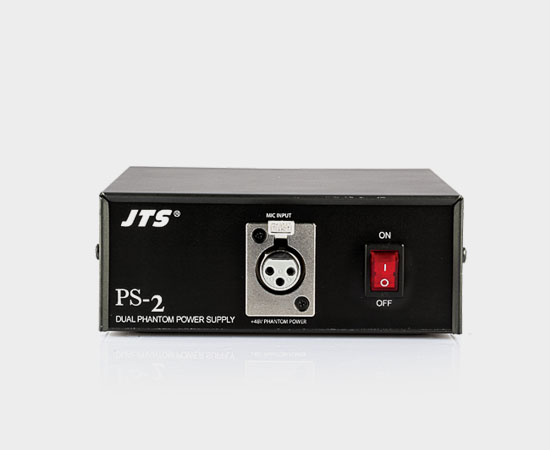

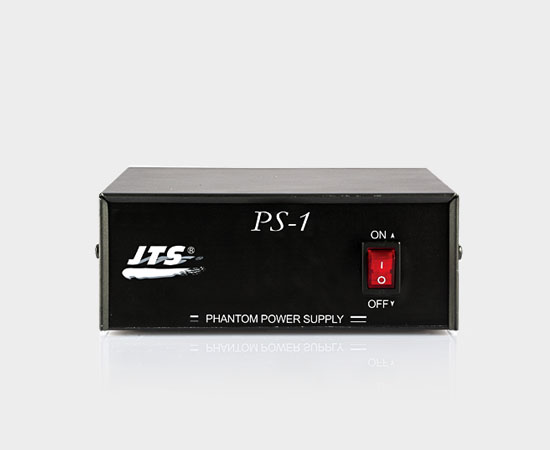

PS-2/PS-1

48V Phantom Power Supply. Provides constant 48V power for condenser microphones when
phantom power is not available on the mixer or for field recording direct to tape, hard disk computer based on DAW. The PS-2 is a dual input version of PS-1.

PS-2/PS-1
PS-2/PS-1

SPECIFICATIONS

PS-2/PS-1
Number of Channels PS-1 : 1
PS-2 : 2
Regulated Output Voltage 48V ±2V DC
Short Circuit Output Current 14 mA
Signal To Noise Ratio 105 dB
Frequency Response 10~22,000 Hz
AC Input 110/220V AC, 50-60 Hz, 3W max
Input Connector 3-pin XLR Female
Output Connector 3-pin XLR Male
Dimensions (mm) 143.6mm(W)* 55.9mm(H)* 184.7mm(D)

DOWNLOAD

USER GUIDES
PS-1/PS-2-03
