UF-10 System

* UHF PLL True Diversity System renders 200 to 480 meters of operation distance
* Maximum 2400 to 3000 selectable frequencies across 60~75 MHz
* 12 groups each of up to 63 compatible channels
* User programmable 6 groups each of 64 channels reserved
* Free space scan function
* JTS patented obstacles-free RF
function synchronizes a transmitter by pushing a button.
* Adjustable squelch level
* JTS LCX circuit design technology minimizes companding noise
* Antenna boost power provided for various
external antenna installation

PRODUCT SERIES

UF-10R

Single Channel Wideband True Diversity Receiver

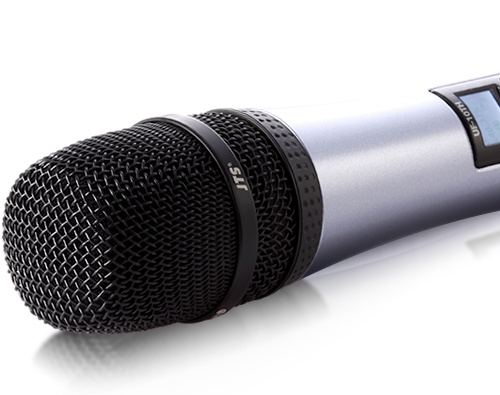

UF-10TH

UHF PLL Handheld Transmitter

UF-10TB

UHF PLL Body-Pack Transmitter

WHAT YOU GETIS SUITABLE FOR

BROADCAST

CONFERENCE

LIVE PERFORMANCE

SPECIFICATIONS

UF-10R

Frequency Preparation	PLL Synthesized Control
Remoset	Radio Frequency
Carrier Frequency Range	502~960 MHz
S/N Ratio	>105dB
T.H.D	<0.6%@1KHz
Display	LCD
Display Contents	Frequency, Antenna A/B, Mute Display, RF/AF Level Meter, Battery Fuel Gauge, ID Number
Controls	Power On/Off, Frequency Up/Down, Frequency Scan, Audio Level, Lock-on, ID Pairing, Remoset
Audio Output Level	-12dB
AF Output Impedance	600Ω
Squelch	Pilot Tone & Noise Mute
Operation Voltage	100~240V AC
Output Connector	1 XLR Balanced Socket 1 Ø 6.3mm Unbalanced phone jack
Dimension(m/m)	212mm(W) * 44mm(H) * 213.9mm(D)

UF-10TH

Frequency Preparation	PLL Synthesized Control
Carrier Frequency Range	502~960 MHz
RF Outputs	10mW / 50mW (Depend on Local Regulation)
Stability	< ±10KHz
Frequency Deviation	±48KHz
LCD Display	Frequency, Battery Fuel Gauge, ID Number
Controls	Power On/Off, AF Level, Frequency Up/Down, Lock-on Mode, ID Pairing
Spurious Emissions	<-50 dBC
Audio Frequency Response	50~16,500 Hz
Battery	UM3, AA 1.5V*2

UF-10TB

Frequency Preparation	PLL Synthesized Control
Carrier Frequency Range	502~960 MHz
RF Outputs	10mW / 50mW (Depend on Local Regulation)
Stability	< ±10KHz
Frequency Deviation	±48KHz
LCD Display	Frequency, Battery Fuel Gauge, ID Number
Controls	Power On/Off, AF Level, Frequency Up/Down, Lock-on Mode, ID Pairing
Spurious Emissions	<-50 dBC
Audio Frequency Response	40~18,000 Hz
Battery	UM3, AA 1.5V*2
